CDCLVD2106RHAR - Texas Instruments

Description: Clock Fanout Buffer 24-OUT 2-IN Dual 1:6 40-Pin VQFN EP T/R

Download CDCLVD2106RHAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

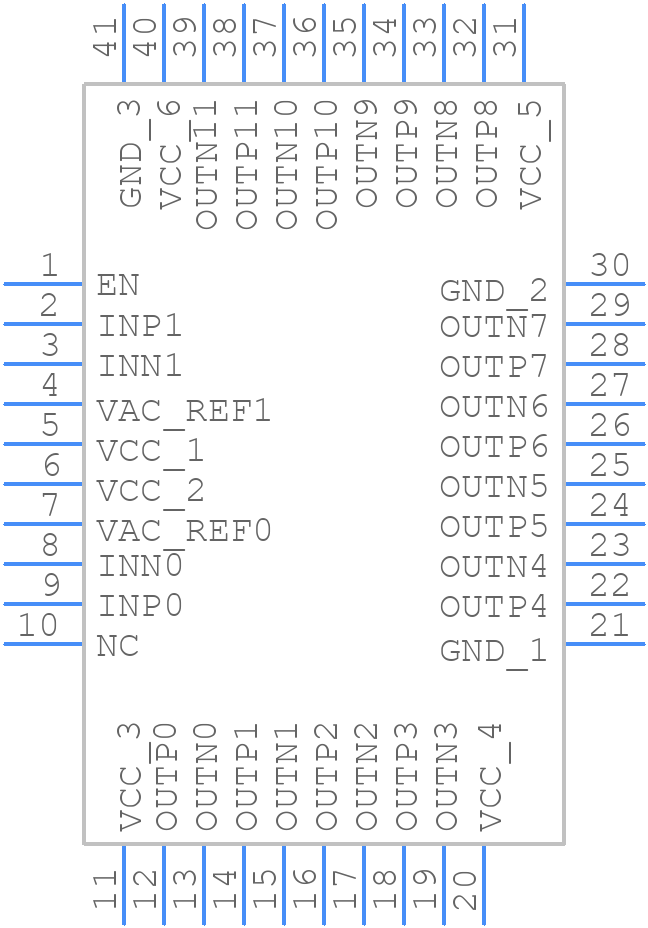

CDCLVD2106RHAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDCLVD2106RHAR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHA0040B
click to zoom
3D Models
CDCLVD2106RHAR - Texas Instruments - 3D model - Quad Flat No-Lead - RHA0040B
click to zoom

CDCLVD2106RHAR Details

  • Manufacturer Part Number:

    CDCLVD2106RHAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    40

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    CDC

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Number of True Outputs:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR,13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    177 mA

  • Prop. Delay@Nom-Sup:

    2.5 ns

  • Propagation Delay (tpd):

    2.5 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.045 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • fmax-Min:

    800 MHz

CDCLVD2106RHAR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a symmetrical layout with matched trace lengths and impedance control to minimize jitter and noise. It's also essential to keep the clock input traces short and away from noisy signals. A good rule of thumb is to keep the clock traces within 1 inch of the device and use a solid ground plane underneath.
  • The CDCLVD2106RHAR outputs should be terminated with a 50-ohm resistor to VCC or GND, depending on the output signal type (LVDS or LVPECL). This termination helps to reduce signal reflections and ensures signal integrity. Additionally, it's recommended to use a series termination resistor (Rs) of 20-50 ohms to further reduce signal reflections.
  • The CDCLVD2106RHAR can accept input clock frequencies up to 1.5 GHz. However, the maximum frequency is dependent on the specific application and the quality of the input clock signal. It's recommended to consult the datasheet and application notes for specific guidance on clock frequency limitations.
  • The CDCLVD2106RHAR can be configured for specific output frequencies or clock multiplication using the SEL0-SEL2 pins. These pins select the desired output frequency or clock multiplication ratio. Consult the datasheet and application notes for specific configuration details and examples.
  • The power consumption of the CDCLVD2106RHAR depends on the specific application and operating conditions. However, typical power consumption is around 150-200 mW. To reduce power consumption, consider using a lower supply voltage, reducing the output clock frequency, or using the device's power-down mode (PD pin).
