Part Image

CDCLVD2106RHAT - Texas Instruments

Description: Low Jitter, Dual 1:6 Universal-to-LVDS Buffer

Download CDCLVD2106RHAT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

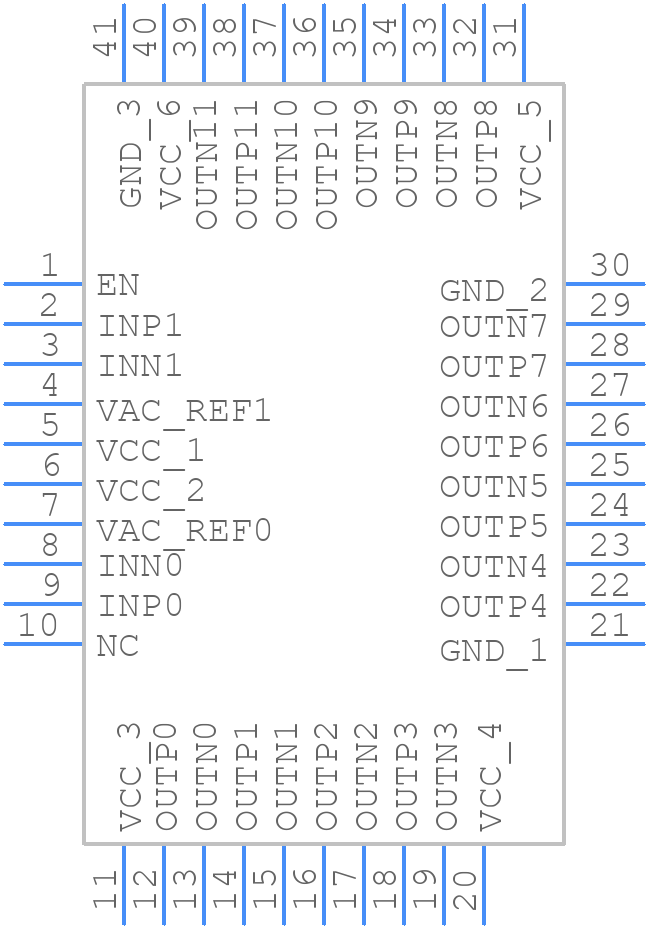

Symbol
CDCLVD2106RHAT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDCLVD2106RHAT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHA0040B
click to zoom
3D Models
CDCLVD2106RHAT - Texas Instruments - 3D model - Quad Flat No-Lead - RHA0040B
click to zoom

CDCLVD2106RHAT Details

  • Manufacturer Part Number:

    CDCLVD2106RHAT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    40

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    CDC

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Number of True Outputs:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    177 mA

  • Prop. Delay@Nom-Sup:

    2.5 ns

  • Propagation Delay (tpd):

    2.5 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.045 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • fmax-Min:

    800 MHz

CDCLVD2106RHAT Frequently Asked Questions (FAQs)

  • A good PCB layout for the CDCLVD2106RHAT involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The CDCLVD2106RHAT requires a single 3.3V power supply. It's recommended to use a low-dropout regulator (LDO) to power the device. The power sequencing requirement is to power up the device after the input clock is stable, and to power down the device before the input clock is stopped.
  • The maximum frequency of operation for the CDCLVD2106RHAT is 210 MHz. As the frequency of operation increases, the power consumption also increases. It's recommended to operate the device at the lowest frequency required for the application to minimize power consumption.
  • To troubleshoot issues with the CDCLVD2106RHAT, use an oscilloscope to measure the output signal and clock jitter. Check the PCB layout for any noise or signal integrity issues. Verify that the input clock is stable and within the recommended frequency range. Also, check the power supply voltage and decoupling capacitors to ensure they are properly connected and functioning correctly.
  • Yes, the CDCLVD2106RHAT can be used in a redundant clocking system. In the event of a clock failure, the device has a built-in clock detection circuit that can detect the loss of the input clock and switch to a backup clock source. The device also has a clock fail-safe feature that ensures the output clock is held in a stable state during clock failure.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CDCLVD2106RHAT Overview

Use the download button to access the CDCLVD2106RHAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCLV, or try a keyword search, such as Clock Drivers
