CDCM61001RHBT - Texas Instruments

Description: Texas Instruments CDCM61001RHBT, PLL Clock Synthesizer, 43.75 → 683.28 MHz, 32-Pin VQFN

Download CDCM61001RHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

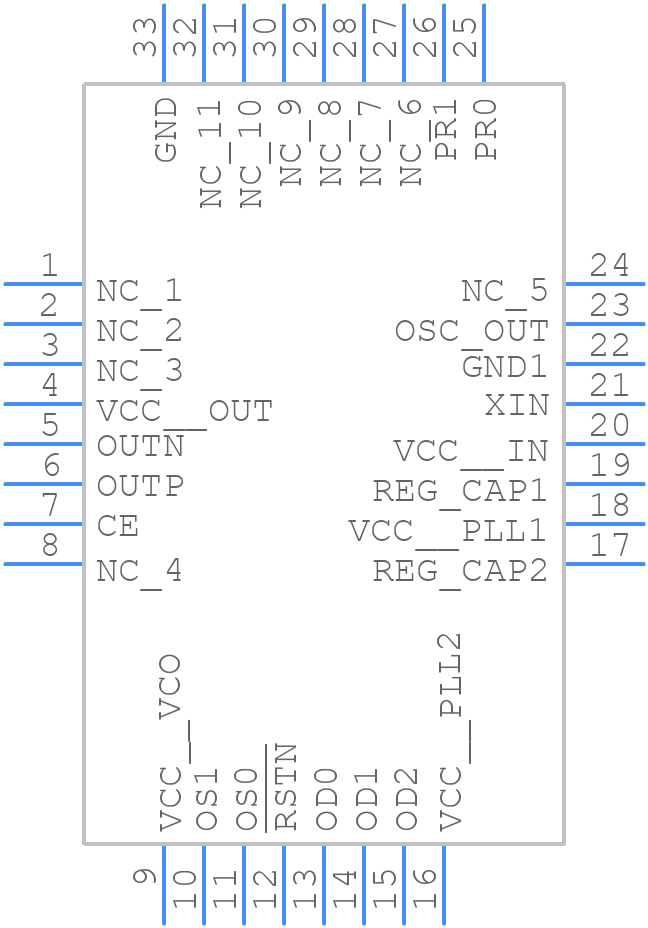

CDCM61001RHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDCM61001RHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E
click to zoom
3D Models
CDCM61001RHBT - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E
click to zoom

CDCM61001RHBT Details

  • Manufacturer Part Number:

    CDCM61001RHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    683.28 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    28.47 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    115 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

CDCM61001RHBT Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane and a separate power plane for the clock and data lines. The device should be placed near the center of the board, and the clock and data lines should be routed away from each other to minimize crosstalk.
  • The CDCM61001RHBT requires a 50-ohm termination resistor on the clock and data lines. The termination resistor should be placed as close to the device as possible, and the lines should be terminated in a 50-ohm load to ensure proper signal integrity.
  • The CDCM61001RHBT supports clock frequencies up to 100 MHz. However, the maximum frequency may vary depending on the specific application and PCB layout. It's recommended to consult the datasheet and perform simulations to ensure the device can support the desired clock frequency.
  • The CDCM61001RHBT requires a specific power sequencing to ensure proper operation. The VCC pin should be powered up first, followed by the VCCA pin. The device should be powered down in the reverse order to prevent damage.
  • The CDCM61001RHBT is rated for operation from -40°C to 85°C. However, the device may be operated at temperatures outside this range with reduced performance and reliability.
