CDCM61004RHBR - Texas Instruments

Description: One Output, Integrated VCO, Low-Jitter Clock Generator

Download CDCM61004RHBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

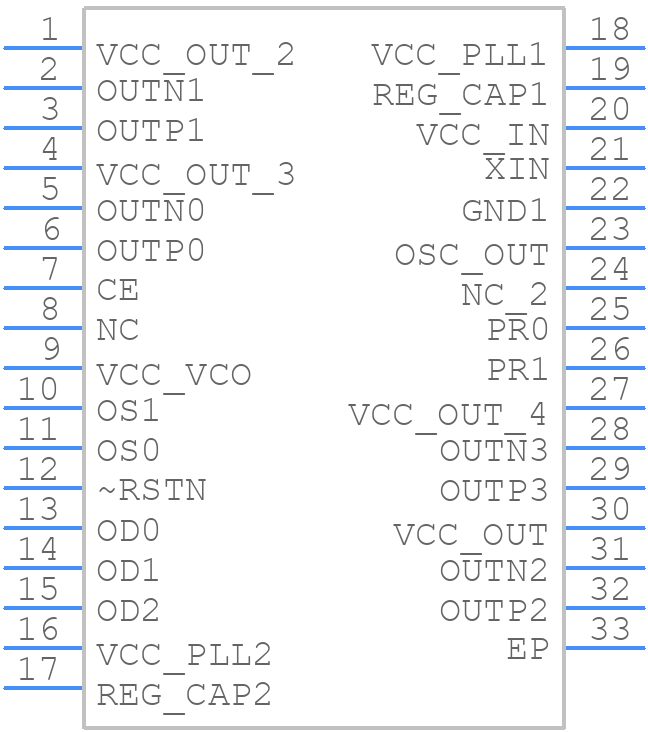

CDCM61004RHBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDCM61004RHBR - Texas Instruments PCB footprint - Other - Other - QFN50P500X500X100-33N
click to zoom
3D Models
CDCM61004RHBR - Texas Instruments - 3D model - Other - QFN50P500X500X100-33N
click to zoom

CDCM61004RHBR Details

  • Manufacturer Part Number:

    CDCM61004RHBR

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    683.264 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    28.47 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    215 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

CDCM61004RHBR Frequently Asked Questions (FAQs)

  • A good PCB layout for CDCM61004RHBR involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
  • Ensure a stable power supply with minimal noise and ripple. Use a 1-10uF decoupling capacitor between VCC and GND, and an additional 100nF capacitor between VCC and GND for high-frequency noise filtering. Place these capacitors close to the device.
  • The CDCM61004RHBR can handle clock frequencies up to 1.5 GHz. However, the actual frequency limit may vary depending on the specific application, PCB layout, and signal integrity.
  • Use an oscilloscope to measure the input and output signals, and check for signal integrity issues. Verify the PCB layout, power supply, and decoupling. Consult the datasheet and application notes for troubleshooting guidelines.
  • While CDCM61004RHBR is optimized for 50Ω systems, it can be used in non-50Ω systems with proper impedance matching. Consult the datasheet and application notes for guidance on impedance matching and signal termination.
