CDCM61004RHBT - Texas Instruments

Description: One Output, Integrated VCO, Low-Jitter Clock Generator

Download CDCM61004RHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

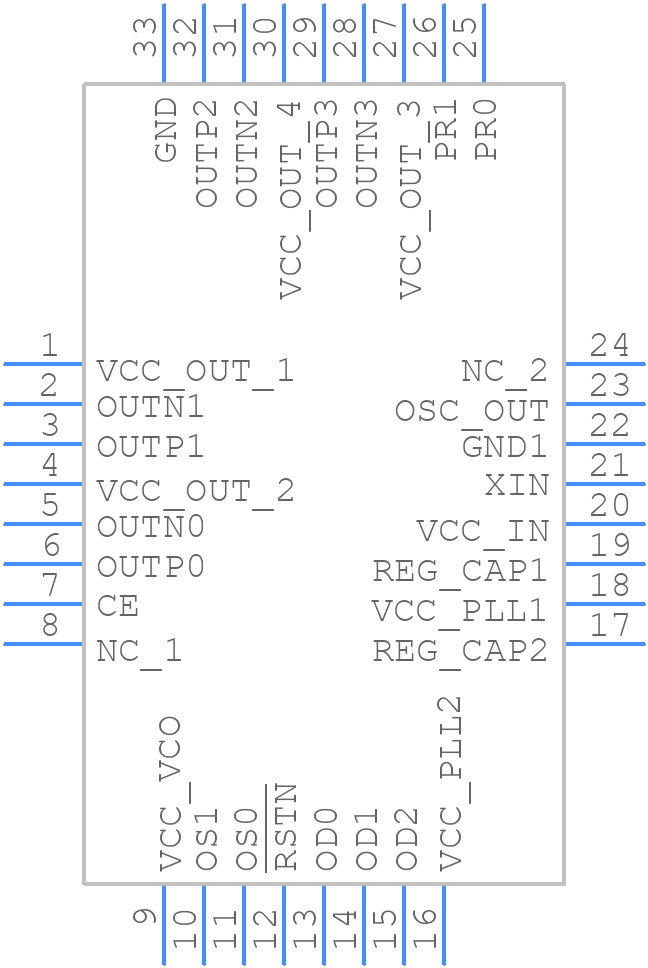

CDCM61004RHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDCM61004RHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E
click to zoom
3D Models
CDCM61004RHBT - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E
click to zoom

CDCM61004RHBT Details

  • Manufacturer Part Number:

    CDCM61004RHBT

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    683.264 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    28.47 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    215 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

CDCM61004RHBT Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane and a separate power plane for the clock distribution. The clock input and output traces should be routed as differential pairs, and the power and ground pins should be decoupled with 0.1uF capacitors.
  • The CDCM61004RHBT requires a 3.3V power supply, and it's recommended to use a low-dropout regulator (LDO) to ensure a clean power supply. Additionally, decoupling capacitors should be placed close to the power pins to filter out noise.
  • The CDCM61004RHBT supports clock frequencies up to 100 MHz, but the maximum frequency may vary depending on the specific application and PCB layout. It's recommended to consult the datasheet and perform simulations to ensure the device can operate at the desired frequency.
  • The CDCM61004RHBT has a programmable clock divider that allows the output frequency to be set. The divider ratio can be set using the SEL0-SEL2 pins, and the output frequency can be calculated using the formula: Output Frequency = Input Frequency / (Divider Ratio + 1).
  • The typical power consumption of the CDCM61004RHBT is around 20-30 mA, depending on the clock frequency and output load. However, this value can vary depending on the specific application and operating conditions.
