Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors to ensure optimal performance.
The CDCM6208V1RGZR is a highly configurable device. To configure it for a specific clock frequency, refer to the device's programming guide and use the provided software tools, such as the TI Clock Design Tool, to generate the necessary configuration data.
The CDCM6208V1RGZR can handle input frequencies up to 1.2 GHz. However, the maximum input frequency may vary depending on the specific application and configuration. It's essential to consult the datasheet and application notes for more information.
To ensure proper power and decoupling, follow the recommended power supply and decoupling capacitor values specified in the datasheet. Additionally, use a low-ESR capacitor and place it as close to the device as possible to minimize noise and ensure stable operation.
The typical power consumption of the CDCM6208V1RGZR varies depending on the specific configuration and operating frequency. However, according to the datasheet, the typical power consumption is around 350 mW at 1.2 GHz input frequency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDCM6208V1RGZR Overview

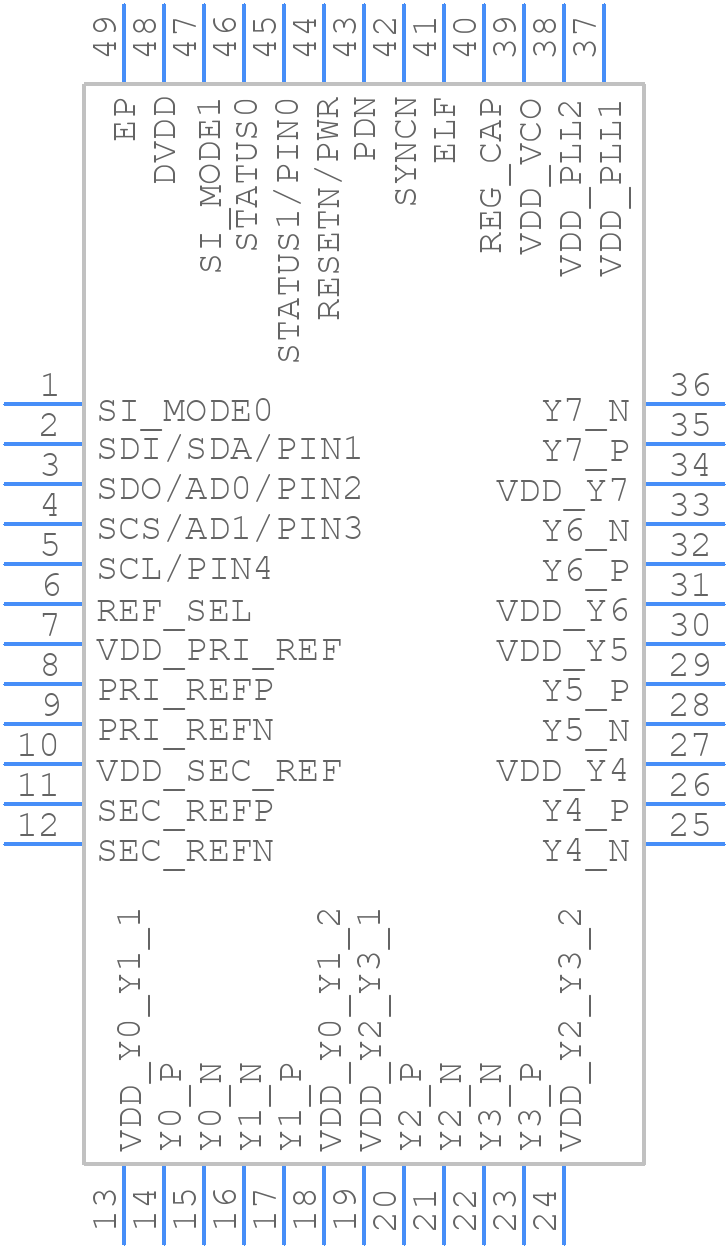

Use the download button to access the CDCM6208V1RGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCM6,
or try a keyword search, such as Clock Generators
