CDCM6208V2RGZT - Texas Instruments

Description: CDCM6208V2RGZT, Clock Generator CML, CMOS, ECL CML, HCSL, LVCMOS, LVDS, LVPECL 2-Input, 48-Pin QFN

Download CDCM6208V2RGZT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

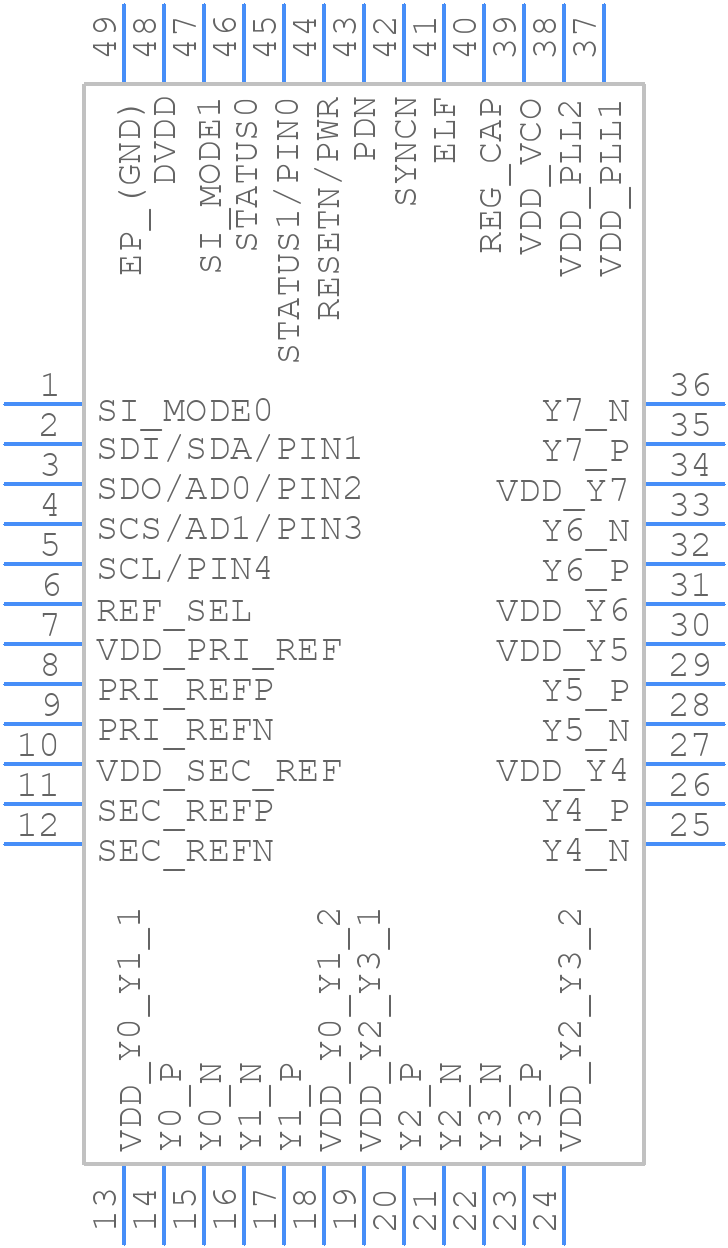

CDCM6208V2RGZT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDCM6208V2RGZT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ (S-PVQFN-N48)_4.08TP
click to zoom
3D Models
CDCM6208V2RGZT - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ (S-PVQFN-N48)_4.08TP
click to zoom

CDCM6208V2RGZT Details

  • Manufacturer Part Number:

    CDCM6208V2RGZT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    IT ALSO OPERATES AT 2.5V AND 3.3V NOMINAL SUPPLY

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    800 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    50 MHz

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

CDCM6208V2RGZT Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to keep the clock signal traces short and away from noisy signals, use a solid ground plane, and decouple the power supply with capacitors. TI also provides a recommended layout guide in their application notes.
  • The CDCM6208V2RGZT can be configured using the SPI interface to set the desired clock frequency output. The device has a range of pre-defined frequencies, and the specific configuration depends on the desired output frequency. Refer to the datasheet and application notes for more information.
  • The CDCM6208V2RGZT can generate clock frequencies up to 1.2 GHz, but the maximum frequency depends on the specific configuration and output load. Refer to the datasheet for more information.
  • The CDCM6208V2RGZT requires a 1.8V power supply, and it's recommended to use a low-dropout regulator (LDO) to power the device. Decoupling capacitors should be placed close to the power pins to filter out noise and ensure stable operation.
  • The typical power consumption of the CDCM6208V2RGZT is around 150 mW, but this can vary depending on the specific configuration and output frequency. Refer to the datasheet for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CDCM6208V2RGZT Overview

Use the download button to access the CDCM6208V2RGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCM6, or try a keyword search, such as Clock Generators
