CDCR83ADBQR - Texas Instruments

CDCR83ADBQR Details

• Manufacturer Part Number:

  CDCR83ADBQR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

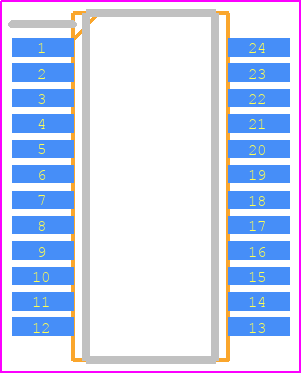

• Part Package Code:

  SSOP

• Package Description:

  SSOP-24

• Pin Count:

  24

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Family:

  CDC

• Input Conditioning:

  STANDARD

• JESD-30 Code:

  R-PDSO-G24

• JESD-609 Code:

  e4

• Length:

  8.65 mm

• Logic IC Type:

  PLL BASED CLOCK DRIVER

• Max I(ol):

  0.036 A

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Inverted Outputs:

  1

• Number of Terminals:

  24

• Number of True Outputs:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  70 mA

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.75 mm

• Supply Voltage-Max (Vsup):

  3.465 V

• Supply Voltage-Min (Vsup):

  3.135 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.635 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3.9 mm

• fmax-Min:

  400 MHz
