Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output traces short, using a solid ground plane, and minimizing noise coupling. Additionally, ensure the power supply decoupling capacitors are placed close to the device.
To minimize high-frequency noise, use a low-pass filter or a ferrite bead in series with the output, and ensure the output is properly terminated. Additionally, use a shielded cable or a twisted pair to connect the output to the load, and consider adding a common-mode choke to reduce EMI.
The CDCS501PWR is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management, such as using a heat sink or a thermal pad, to maintain a safe operating temperature.
The CDCS501PWR is a commercial-grade device, and its use in high-reliability or safety-critical applications may require additional qualification and testing. Texas Instruments provides a range of devices with enhanced reliability and safety features, such as the CDCS501PWR-Q1, which is specifically designed for automotive and industrial applications.
To troubleshoot issues with the CDCS501PWR, start by verifying the input voltage, output load, and PCB layout. Use an oscilloscope to measure the output voltage and current, and check for signs of oscillation or ringing. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDCS501PWR Overview

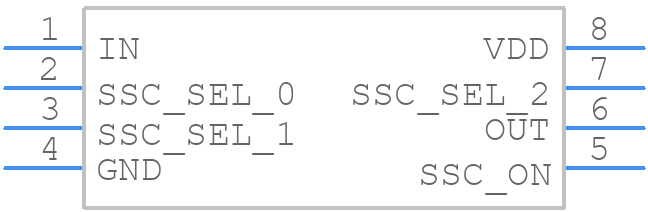

Use the download button to access the CDCS501PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCS5,
or try a keyword search, such as Clock Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
