CDCU877ARHAR - Texas Instruments

Description: CDCU877ARHAR

Download CDCU877ARHAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

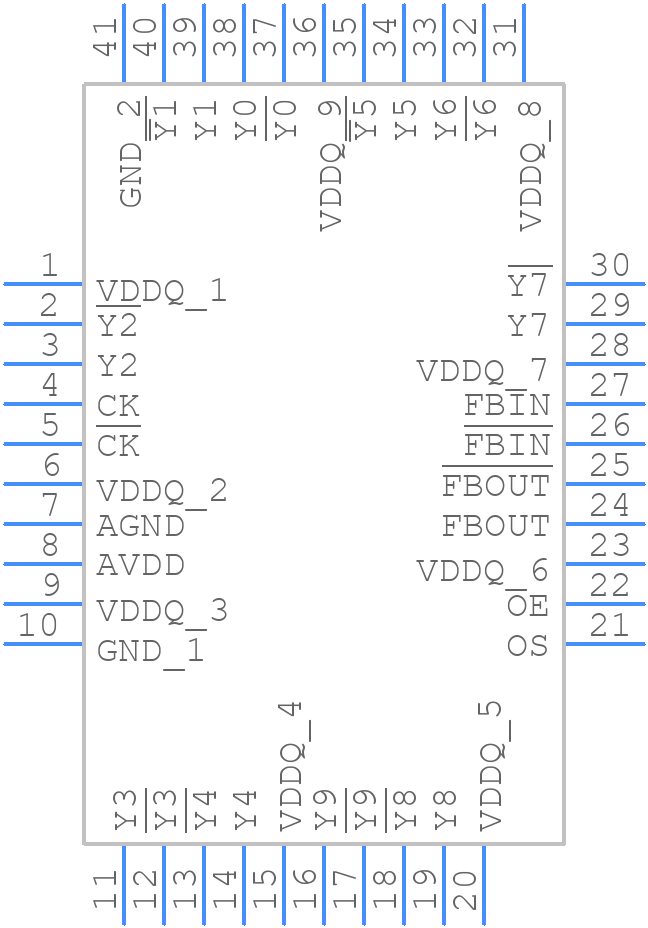

CDCU877ARHAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDCU877ARHAR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHA0040D
click to zoom
3D Models
CDCU877ARHAR - Texas Instruments - 3D model - Quad Flat No-Lead - RHA0040D
click to zoom

CDCU877ARHAR Details

  • Manufacturer Part Number:

    CDCU877ARHAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    VQFN-40

  • Pin Count:

    40

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    877

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.009 A

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Number of True Outputs:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    235 mA

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.035 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.9 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • fmax-Min:

    340 MHz

CDCU877ARHAR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization and prevents damage to the device.
  • When using the CDCU877ARHAR in a system with multiple clock domains, it's essential to ensure that the clock signal is properly synchronized and buffered to prevent clock domain crossing issues. Use a clock buffer or a clock domain crossing circuit to synchronize the clock signal.
  • The CDCU877ARHAR can handle clock frequencies up to 100 MHz. However, the maximum frequency may vary depending on the specific application and system requirements. It's recommended to consult the datasheet and perform thorough testing to ensure the device operates within the specified frequency range.
  • When implementing the CDCU877ARHAR in a system with a high-speed interface, it's crucial to ensure proper signal integrity and termination. Use a high-speed signal conditioner or a repeater to maintain signal quality and ensure reliable data transfer.
  • The CDCU877ARHAR has a maximum junction temperature of 150°C. To ensure proper heat dissipation, use a heat sink or a thermal pad, and ensure good airflow around the device. It's also recommended to follow the thermal design guidelines provided in the datasheet.
