CDCU877RHAR - Texas Instruments

Description: Clock Drivers & Distribution 1.8v PLL Clock Driver

Download CDCU877RHAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

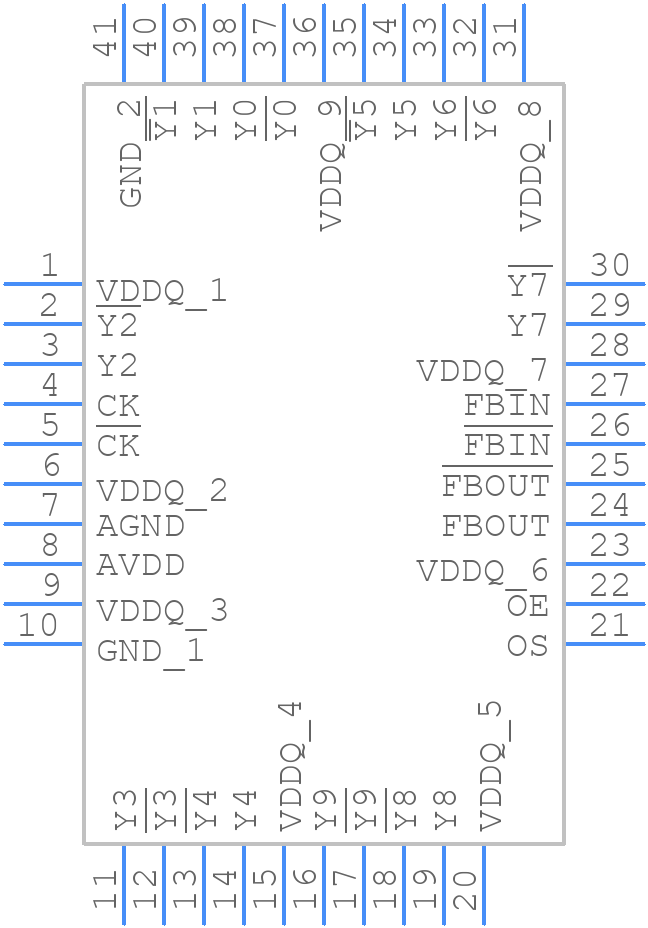

Symbol
CDCU877RHAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDCU877RHAR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHA0040D/2021
click to zoom
3D Models
CDCU877RHAR - Texas Instruments - 3D model - Quad Flat No-Lead - RHA0040D/2021
click to zoom

CDCU877RHAR Details

  • Manufacturer Part Number:

    CDCU877RHAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    VQFN-40

  • Pin Count:

    40

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    877

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.009 A

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Number of True Outputs:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    235 mA

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.035 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.9 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • fmax-Min:

    340 MHz

CDCU877RHAR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VCCP, and then the clock signal. This ensures proper initialization and prevents damage to the device.
  • When using the CDCU877RHAR in a system with multiple clock domains, it's essential to ensure that the clock signal is properly synchronized and buffered to prevent clock domain crossing issues. Use a clock buffer or a clock domain crossing circuit to synchronize the clock signal.
  • The CDCU877RHAR can handle clock frequencies up to 100 MHz. However, the actual frequency limit may vary depending on the specific application, PCB layout, and signal integrity.
  • The CDCU877RHAR can be configured to work with various PLLs or clock generators by adjusting the clock input pin (CLKIN) and the clock output pin (CLKOUT). Refer to the PLL or clock generator datasheet for specific configuration requirements.
  • The recommended termination scheme for the CDCU877RHAR's output signals is to use a series termination resistor (Rs) of 22-33 ohms, followed by a parallel termination capacitor (Cp) of 1-2 pF. This helps to reduce signal reflections and improve signal integrity.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

CDCU877RHAR Overview

Use the download button to access the CDCU877RHAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCU8, or try a keyword search, such as Clock Drivers
