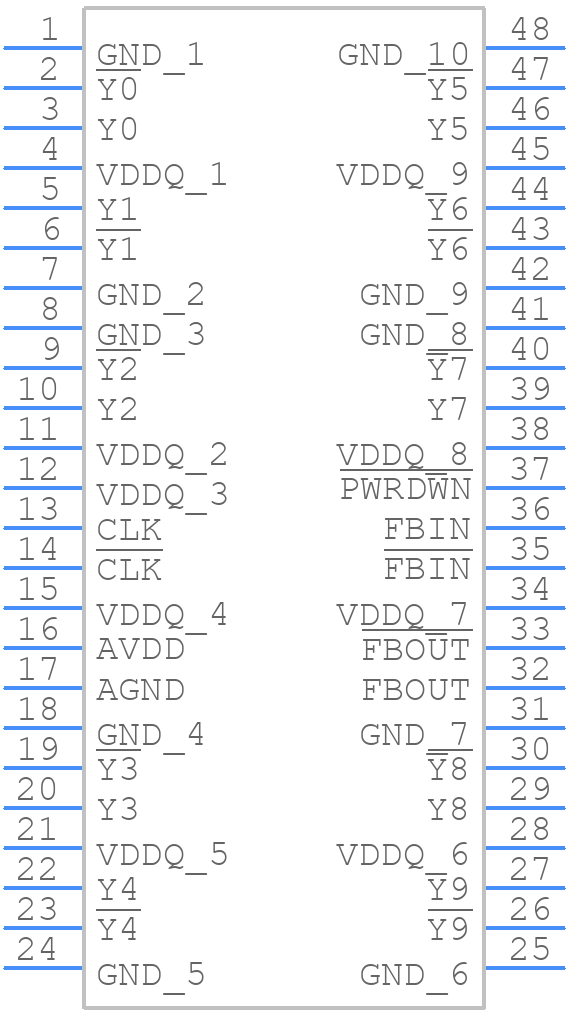

CDCV857ADGGRG4 - Texas Instruments

CDCV857ADGGRG4 Details

• Manufacturer Part Number:

  CDCV857ADGGRG4

• Brand Name:

  Texas Instruments

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TSSOP

• Package Description:

  GREEN, PLASTIC, TSSOP-48

• Pin Count:

  48

• Country Of Origin:

  Malaysia

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Family:

  857

• Input Conditioning:

  DIFFERENTIAL

• JESD-30 Code:

  R-PDSO-G48

• JESD-609 Code:

  e4

• Length:

  12.5 mm

• Load Capacitance (CL):

  14 pF

• Logic IC Type:

  PLL BASED CLOCK DRIVER

• Max I(ol):

  0.012 A

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Terminals:

  48

• Number of True Outputs:

  10

• Operating Temperature-Max:

  85 °C

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP48,.3,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  12 mA

• Qualification Status:

  Not Qualified

• Same Edge Skew-Max (tskwd):

  0.075 ns

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max (Vsup):

  2.7 V

• Supply Voltage-Min (Vsup):

  2.3 V

• Supply Voltage-Nom (Vsup):

  2.5 V

• Surface Mount:

  YES

• Temperature Grade:

  OTHER

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  6.1 mm

• fmax-Min:

  180 MHz
