CDCVF857DGGR - Texas Instruments

Description: 2.5 V Phase Lock Loop DDR Clock Driver

Download CDCVF857DGGR Model

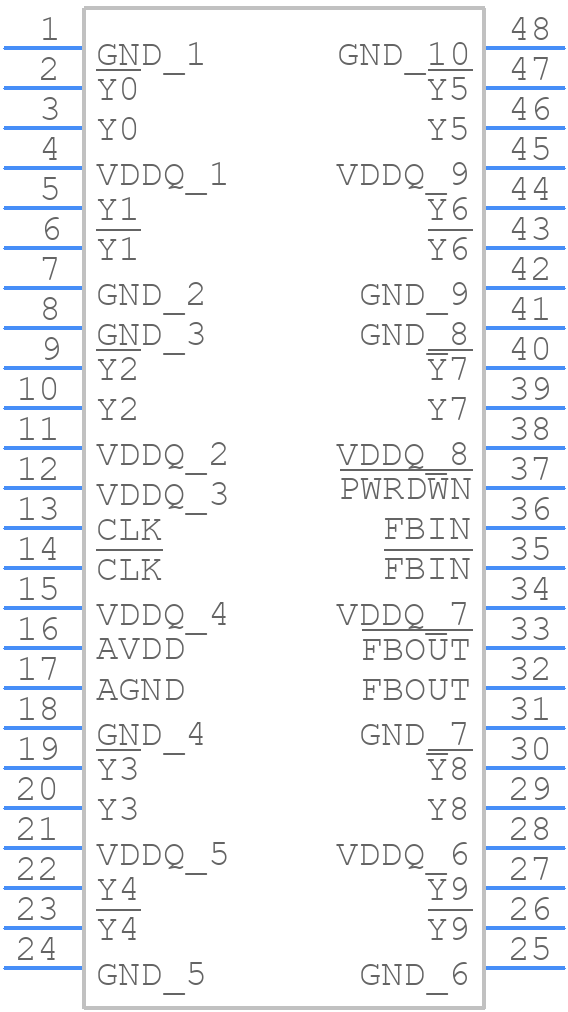

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CDCVF857DGGR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGG (R-PDSO-G48)
click to zoom
3D Models
CDCVF857DGGR - Texas Instruments  - 3D model - Small Outline Packages - DGG (R-PDSO-G48)
click to zoom

CDCVF857DGGR Details

  • Manufacturer Part Number:

    CDCVF857DGGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-48

  • Pin Count:

    48

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    857

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e4

  • Length:

    12.5 mm

  • Load Capacitance (CL):

    14 pF

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of True Outputs:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP48,.3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    10 mA

  • Prop. Delay@Nom-Sup:

    3.5 ns

  • Propagation Delay (tpd):

    3.5 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.04 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    2.7 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

  • fmax-Min:

    220 MHz

CDCVF857DGGR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the input clock signal. This ensures proper initialization and prevents potential latch-up conditions.
  • The clock input signal should be a clean, low-jitter signal with a rise time of less than 2 ns. It's recommended to use a clock signal with a 50% duty cycle and to avoid clock frequencies below 10 MHz.
  • The maximum frequency of operation for the CDCVF857DGGR is 250 MHz. However, the actual operating frequency may be limited by the specific application, PCB layout, and environmental conditions.
  • To ensure proper signal integrity and minimize jitter, use a low-impedance output termination (e.g., 50 ohms), keep the output traces short and well-matched, and avoid using long cables or connectors.
  • The recommended operating temperature range for the CDCVF857DGGR is -40°C to 85°C. However, the device can operate up to 125°C with reduced performance and reliability.
