Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common-mode choke or a ferrite bead to filter out high-frequency noise.
The CLC006BMX/NOPB requires a dual power supply, with VCC connected to a positive voltage (typically 5V or 3.3V) and VEE connected to a negative voltage (typically -5V or -3.3V). The input common-mode voltage should be set to the midpoint of the power supply voltage range.
The maximum input voltage of the CLC006BMX/NOPB is ±10V, but it's recommended to keep the input voltage within the power supply voltage range to ensure optimal performance and prevent damage to the device.
To reduce noise and distortion, it's recommended to use a low-pass filter at the output, and to keep the output traces as short as possible. Additionally, using a high-quality power supply and decoupling capacitors can help to reduce noise and distortion.
The CLC006BMX/NOPB is a high-speed op-amp with a bandwidth of 120MHz, making it suitable for high-frequency applications such as video amplifiers, data converters, and RF amplifiers. However, the device's performance may degrade at very high frequencies, and additional filtering or compensation may be required.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CLC006BMX/NOPB Overview

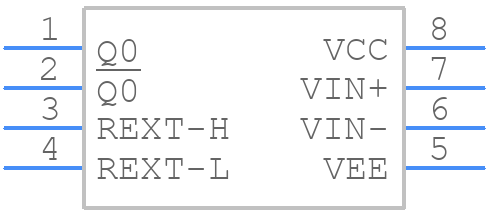

Use the download button to access the CLC006BMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CLC00,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
