CLC5957MTDX - Texas Instruments

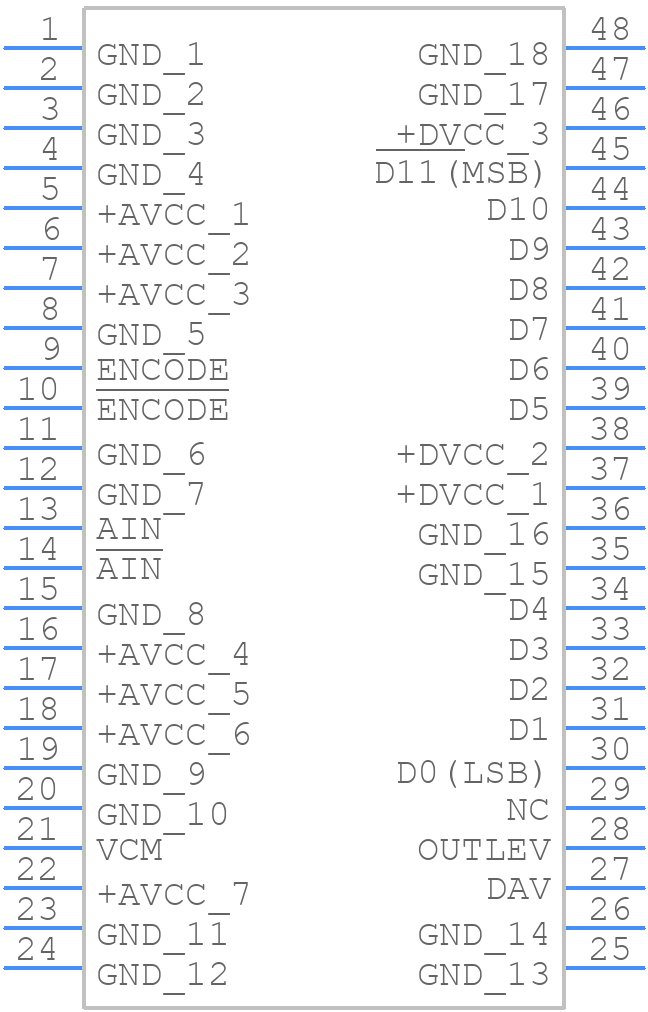

CLC5957MTDX Details

• Manufacturer Part Number:

  CLC5957MTDX

• Part Life Cycle Code:

  Obsolete

• Package Description:

  TSSOP-48

• HTS Code:

  8542.39.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Analog Input Voltage-Max:

  2.048 V

• Analog Input Voltage-Min:

  -2.048 V

• Conversion Time-Max:

  0.0142 µs

• Converter Type:

  ADC, PROPRIETARY METHOD

• JESD-30 Code:

  R-PDSO-G48

• JESD-609 Code:

  e0

• Length:

  12.5 mm

• Linearity Error-Max (EL):

  0.03662109%

• Moisture Sensitivity Level:

  2

• Number of Analog In Channels:

  1

• Number of Bits:

  12

• Number of Functions:

  1

• Number of Terminals:

  48

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  2S COMPLEMENT BINARY

• Output Format:

  PARALLEL, WORD

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP48,.3,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  235

• Sample Rate:

  75 MHz

• Sample and Hold / Track and Hold:

  TRACK

• Screening Level:

  TS 16949

• Seated Height-Max:

  1.1 mm

• Supply Current-Max:

  150 mA

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  20

• Width:

  6.1 mm
