CLT03-1SC3 - STMicroelectronics

Description: Inrush Current Limiters Single line self powered digital input current limiter in SOT23-8L

Download CLT03-1SC3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

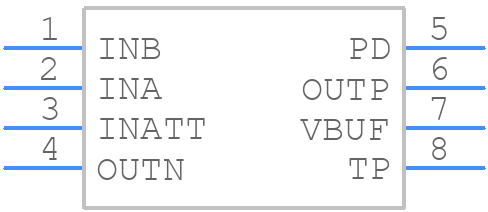

CLT03-1SC3 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
CLT03-1SC3 - STMicroelectronics PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - SOT23-8L 2.9 x 2.8 mm
click to zoom
3D Models
CLT03-1SC3 - STMicroelectronics - 3D model - SOT23 (8-Pin) - SOT23-8L 2.9 x 2.8 mm
click to zoom

CLT03-1SC3 Details

  • Manufacturer Part Number:

    CLT03-1SC3

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    210

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

CLT03-1SC3 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the CLT03-1SC3 is -40°C to 125°C.
  • To ensure proper soldering, follow the recommended soldering profile and use a solder with a melting point above 217°C. Also, ensure the PCB is designed with a suitable thermal relief pattern.
  • The maximum allowable voltage for the CLT03-1SC3 is 3.6V. Exceeding this voltage may damage the device.
  • Store the CLT03-1SC3 in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Avoid bending or flexing the leads during handling.
  • Yes, the CLT03-1SC3 is suitable for high-frequency applications up to 3 GHz. However, ensure proper PCB design and layout to minimize signal loss and parasitic effects.
