The recommended operating voltage range for the CMX994AQ4 is 2.7V to 5.5V.
To configure the CMX994AQ4 for optimal performance, ensure that the input signal is within the recommended voltage range, and that the device is properly biased. Additionally, ensure that the device is operated within the recommended temperature range of -40°C to +85°C.
The maximum power consumption of the CMX994AQ4 is 120mW at 3.3V supply voltage.
Yes, the CMX994AQ4 is designed to operate in high-temperature applications up to 85°C. However, it's recommended to derate the power consumption and ensure proper thermal management to prevent overheating.
To troubleshoot issues with the CMX994AQ4, start by verifying the power supply voltage and ensuring that the device is properly biased. Check the input signal integrity and ensure that it is within the recommended voltage range. If issues persist, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CMX994AQ4 Overview

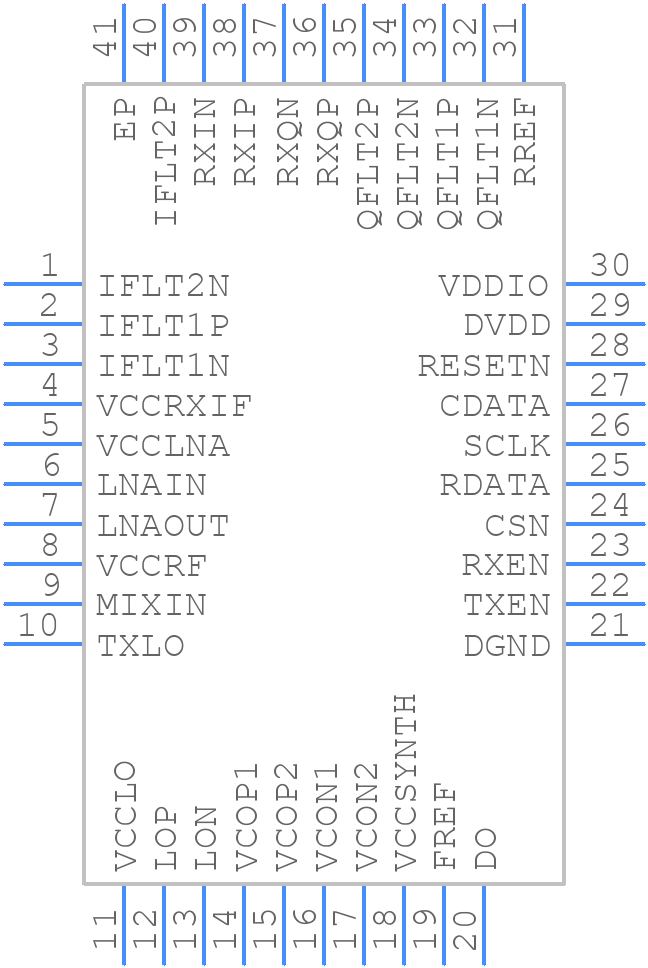

Use the download button to access the CMX994AQ4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMX99,
or try a keyword search, such as Other Telecom ICs
