CNY173SR2M - onsemi

Description: DIN-EN/IEC60747-5-5, 850 V Peak Working Insulation Voltage; UL1577, 4,170 VACRMS for 1 Minute; High BVCEO: 70 V Minimum (CNY17XM, CNY17FXM, MOC8106M); Current Transfer Ratio In Select Groups; Minimizes Unit-to-Unit Variation; Safety and Regulatory Approvals:; Very Low Coupled Capacitance Along With No Chip-to-Pin 6 Base Connection for Minimum Noise Susceptability (CNY17FXM, MOC8106M); Closely Matched Current Transfer Ratio (CTR)

Download CNY173SR2M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

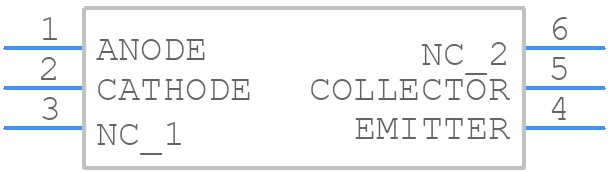

CNY173SR2M - onsemi - PCB symbol
click to zoom
PCB Footprints
CNY173SR2M - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - CNY173SR2M
click to zoom
3D Models
CNY173SR2M - onsemi - 3D model - Small Outline Packages - CNY173SR2M
click to zoom

CNY173SR2M Details

  • Manufacturer Part Number:

    CNY173SR2M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Manufacturer Package Code:

    646BY

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    100%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.65 V

  • Isolation Voltage-Max:

    4170 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.000006 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

CNY173SR2M Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the CNY173SR2M is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it's essential to follow proper derating guidelines, ensure good thermal management, and consider using a heat sink if necessary.
  • The maximum allowable voltage for the CNY173SR2M is 80 V, but it's recommended to operate within the specified voltage range to ensure reliable operation.
  • To choose the correct current-limiting resistor, calculate the required resistance value based on the LED forward voltage, desired current, and supply voltage, and select a resistor with a suitable power rating.
  • While the CNY173SR2M is not specifically designed for high-frequency applications, it can be used up to a few hundred kHz. However, it's essential to consider the optocoupler's bandwidth and signal attenuation when operating at higher frequencies.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CNY173SR2M Overview

Use the download button to access the CNY173SR2M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CNY17, or try a keyword search, such as Optocoupler
