CNY17F-2 - Isocom

Description: NON-BASE LEAD OPTICALLY COUPLED ISOLATOR PHOTOTRANSISTOR OUTPUT

Download CNY17F-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

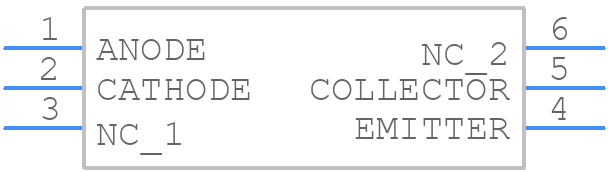

CNY17F-2 - Isocom - PCB symbol
click to zoom
PCB Footprints
CNY17F-2 - Isocom PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-6
click to zoom
3D Models
CNY17F-2 - Isocom - 3D model - Dual-In-Line Packages - DIP-6
click to zoom

CNY17F-2 Details

  • Manufacturer Part Number:

    CNY17F-2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, DIP-6

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Isocom Components

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    22%

  • Current Transfer Ratio-Nom:

    63%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.65 V

  • Isolation Voltage-Max:

    5300 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.16 W

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

CNY17F-2 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the CNY17F-2 is -40°C to 100°C, although it can withstand storage temperatures from -40°C to 150°C.
  • To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a soldering time of 2-3 seconds. Also, make sure the component is clean and free of oxidation.
  • The maximum allowable voltage for the CNY17F-2 is 5.5V, although the recommended operating voltage is 3.3V to 5V.
  • To ensure optimal reliability, handle the CNY17F-2 by the body, avoid touching the leads, and store it in a dry, clean environment. Also, avoid bending or flexing the leads excessively.
  • The typical response time of the CNY17F-2 is around 10-20 μs, although this can vary depending on the specific application and operating conditions.
