CNY17F-2 - Lite-On

Description: Transistor Output Optocouplers HCEV, 63%, 5KV

Download CNY17F-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

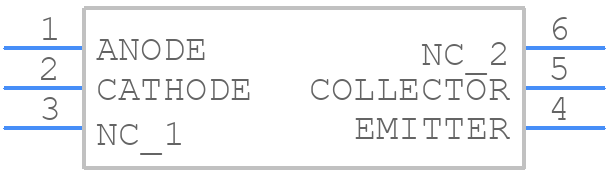

CNY17F-2 - Lite-On - PCB symbol
click to zoom
PCB Footprints
CNY17F-2 - Lite-On PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - CNY17F-2
click to zoom
3D Models
CNY17F-2 - Lite-On - 3D model - Dual-In-Line Packages - CNY17F-2
click to zoom

CNY17F-2 Details

  • Manufacturer Part Number:

    CNY17F-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-6

  • Country Of Origin:

    Mainland China, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.60.00.80

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Nom:

    63%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Isolation Voltage-Max:

    5000 V

  • Number of Elements:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER
