CNY17F-2 - Vishay

Description: Optoisolator Transistor Output 5000Vrms 1 Channel 6-DIP

Download CNY17F-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

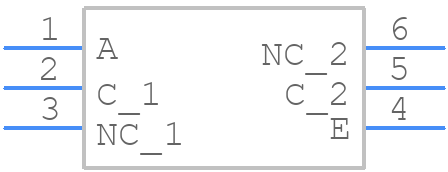

CNY17F-2 - Vishay - PCB symbol
click to zoom
PCB Footprints

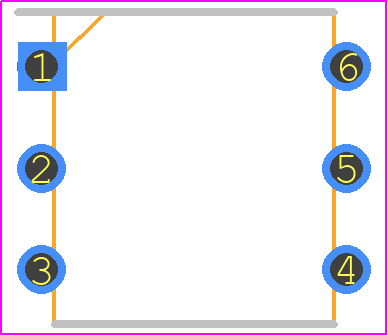

CNY17F-2 - Vishay PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-6_2023-1
click to zoom
3D Models
CNY17F-2 - Vishay - 3D model - Dual-In-Line Packages - DIP-6_2023-1
click to zoom

CNY17F-2 Details

  • Manufacturer Part Number:

    CNY17F-2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    63%

  • Current Transfer Ratio-Nom:

    63%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.65 V

  • Isolation Voltage-Max:

    5300 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.15 W

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Copper/Silver (Sn/Cu/Ag)

CNY17F-2 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the CNY17F-2 is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it's essential to follow proper derating guidelines, ensure good thermal management, and consider using a heat sink if necessary.
  • The maximum allowable voltage for the CNY17F-2 is 70 V, but it's recommended to operate within the specified voltage range to ensure reliable operation.
  • To choose the correct current-limiting resistor, calculate the required resistance value based on the input voltage, LED forward voltage, and desired current using Ohm's law and the datasheet specifications.
  • The typical response time of the CNY17F-2 is around 10 μs, but this can vary depending on the specific application and operating conditions.
