Description:Composite type with a PNP/NPN transistor contained in package, facilitating high-density mounting; The CPH5517 consists of two chips which are equivalent to the CPH3116 and the CPH3216, respectively; Ultrasmall package permitting applied sets to be small and slime (mounting height : 0.9mm)
A recommended PCB layout for optimal thermal performance would be to have a solid copper plane on the top and bottom layers, with thermal vias connecting them. This helps to dissipate heat efficiently. Additionally, it's recommended to have a minimum of 2oz copper thickness and to avoid routing high-frequency signals near the device.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, consider derating the device's power dissipation according to the temperature derating curve provided in the datasheet.
The recommended soldering conditions for CPH5517-TL-E are: peak temperature of 260°C, soldering time of 10-30 seconds, and a soldering temperature profile that follows the JEDEC J-STD-020 standard. It's also recommended to use a solder with a melting point above 217°C.
To handle ESD protection during handling and assembly, it's recommended to follow standard ESD precautions, such as using ESD-safe workstations, wrist straps, and packaging materials. Additionally, ensure that the device is handled in a static-safe environment, and avoid touching the device's pins or exposed die.
The recommended storage and handling conditions for CPH5517-TL-E are: storage temperature range of -40°C to 125°C, relative humidity of 60% or less, and protection from direct sunlight and moisture. It's also recommended to store the devices in their original packaging or in a sealed, ESD-safe container.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CPH5517-TL-E Overview

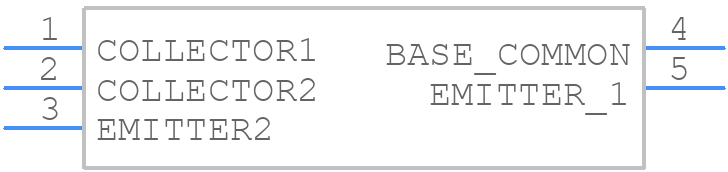

Use the download button to access the CPH5517-TL-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CPH55,
or try a keyword search, such as Small Signal Bipolar Transistors
