CPH5518-TL-H - onsemi

Description: Last Shipments - Bipolar Transistor, (-)30V, (-)3A, Low VCE(sat), Complementary Dual

Download CPH5518-TL-H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

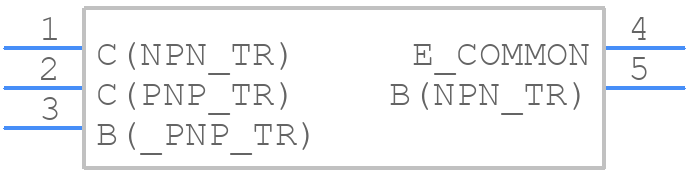

Symbol
CPH5518-TL-H - onsemi - PCB symbol
click to zoom
PCB Footprints
CPH5518-TL-H - onsemi PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - CPH5 CASE 318BC ISSUE O
click to zoom
3D Models
CPH5518-TL-H - onsemi - 3D model - SOT23 (5-Pin) - CPH5 CASE 318BC ISSUE O
click to zoom

CPH5518-TL-H Details

  • Manufacturer Part Number:

    CPH5518-TL-H

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    CPH5

  • Pin Count:

    5

  • Manufacturer Package Code:

    318BC

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Collector Current-Max (IC):

    1 A

  • DC Current Gain-Min (hFE):

    200

  • JESD-609 Code:

    e6

  • Moisture Sensitivity Level:

    1

  • Operating Temperature-Max:

    150 °C

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Power Dissipation-Max (Abs):

    1.2 W

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN BISMUTH

  • Time@Peak Reflow Temperature-Max (s):

    30

CPH5518-TL-H Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
  • Implement a robust thermal management system, including a heat sink, thermal interface material, and a cooling fan if necessary. Monitor junction temperature (TJ) and adjust the system design accordingly.
  • Handle the device with ESD-protective equipment and follow standard ESD precautions. The device has built-in ESD protection, but it's not a substitute for proper handling and storage procedures.
  • Yes, the CPH5518-TL-H is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure you follow the recommended operating conditions and design guidelines.
  • Use a systematic approach to identify the issue. Check the power supply, input/output connections, and signal integrity. Consult the datasheet, application notes, and onsemi's technical support resources for guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CPH5518-TL-H Overview

Use the download button to access the CPH5518-TL-H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CPH55, or try a keyword search, such as Small Signal Bipolar Transistors
