CR14-MQP/1GE - STMicroelectronics

Description: CR14-MQP/1GE, EEPROM Memory, 16-Pin SOIC

Download CR14-MQP/1GE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

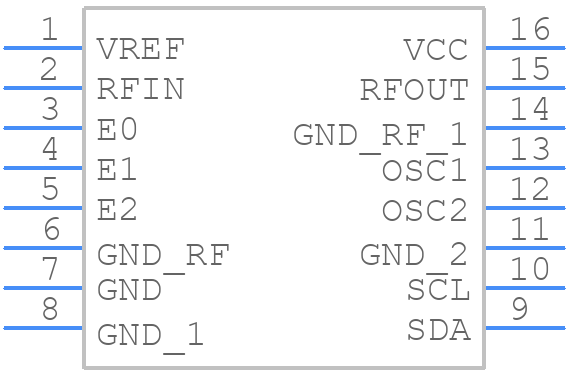

CR14-MQP/1GE - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
CR14-MQP/1GE - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - ST SO-16N_2
click to zoom
3D Models
CR14-MQP/1GE - STMicroelectronics - 3D model - Small Outline Packages - ST SO-16N_2
click to zoom

CR14-MQP/1GE Details

  • Manufacturer Part Number:

    CR14-MQP/1GE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.02 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

CR14-MQP/1GE Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for CR14-MQP/1GE is -40°C to 125°C.
  • To ensure reliable communication with the CR14-MQP/1GE, make sure to follow the recommended PCB layout guidelines, use a stable clock source, and implement proper signal termination and filtering.
  • The CR14-MQP/1GE supports a maximum data transfer rate of 1 Gbps.
  • Yes, the CR14-MQP/1GE is designed for high-reliability applications and is qualified according to the AEC-Q100 standard for automotive applications.
  • To configure the CR14-MQP/1GE for optimal power consumption, use the power-down mode, adjust the clock frequency, and optimize the transmit and receive modes according to your application requirements.
