CS4207-CNZ footprint, schematic symbol and 3D model by Cirrus Logic

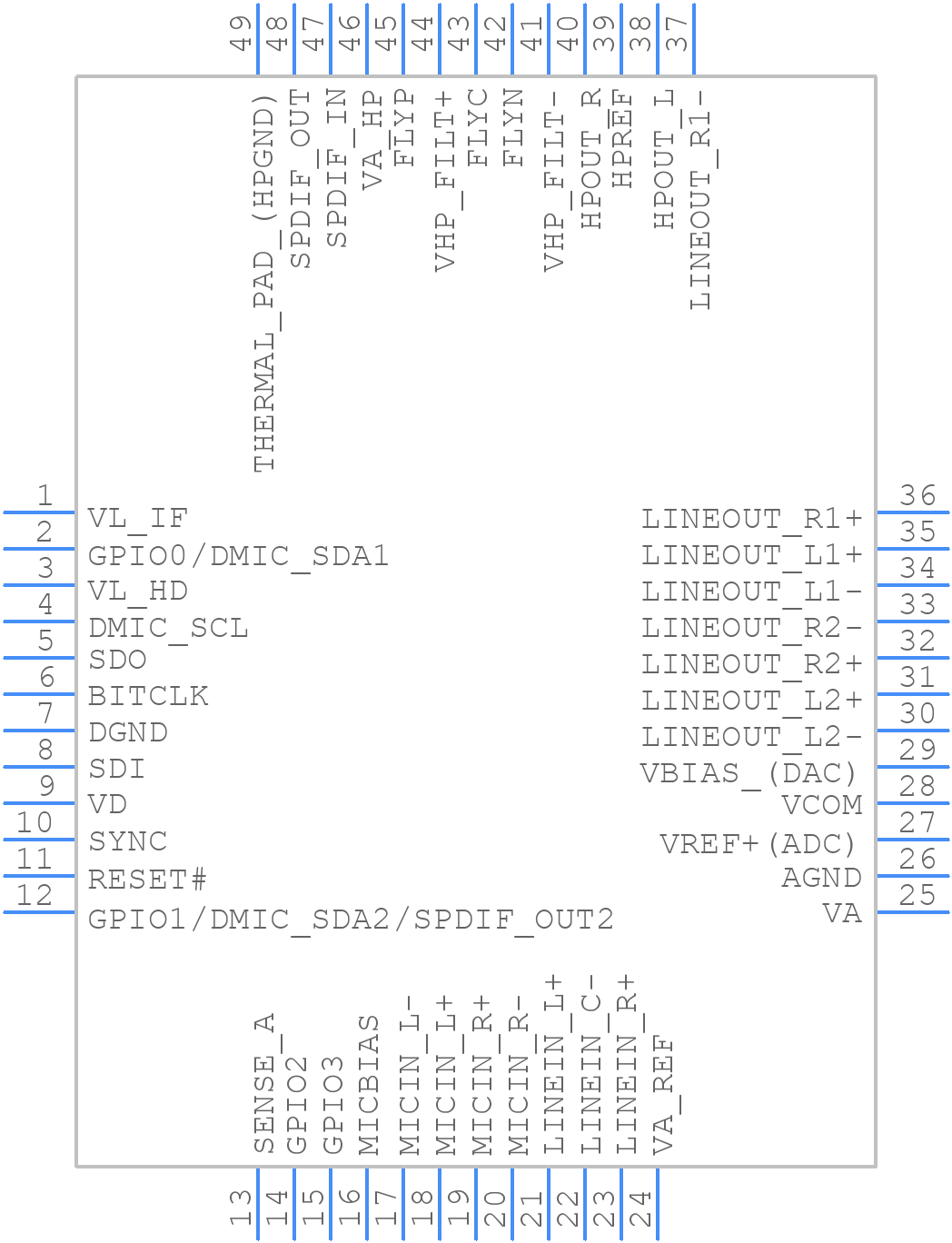

Symbol

click to zoom

PCB Footprints

CS4207-CNZ - Cirrus Logic PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48L QFN (6 X 6 mm body)

click to zoom

3D Models

CS4207-CNZ - Cirrus Logic - 3D model - Quad Flat No-Lead - 48L QFN (6 X 6 mm body)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CS4207-CNZ
Part Number CS4207-CNZ
Manufacturer Cirrus Logic
Pin Count 49
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 48L QFN (6 X 6 mm body)
Released Date Sep 21, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

CS4207-CNZ Details

Manufacturer Part Number:
CS4207-CNZ
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
SON
Package Description:
6 X 6 MM, LEAD FREE, MO-229, QFN-48
Pin Count:
48
HTS Code:
8542.39.00.60
Manufacturer:
Cirrus Logic
YTEOL:
0
Additional Feature:
IT ALSO OPERATES WITH 1.42 TO 1.89 V DIGITAL SUPPLY
Consumer IC Type:
CONSUMER CIRCUIT
JESD-30 Code:
S-XQCC-N48
Length:
6 mm
Number of Functions:
1
Number of Terminals:
48
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC48,.24SQ,16
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Qualification Status:
Not Qualified
Seated Height-Max:
0.8 mm
Supply Voltage-Max (Vsup):
5.25 V
Supply Voltage-Min (Vsup):
2.97 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Width:
6 mm

CS4207-CNZ Frequently Asked Questions (FAQs)

The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures that the internal voltage regulators are powered up correctly.
The CS4207-CNZ can be configured for master or slave mode by setting the M/S bit in the Control Register. In master mode, the CS4207-CNZ generates the clock signal, while in slave mode, it receives the clock signal from an external source.
The maximum allowed capacitance for the analog input coupling capacitors is 10uF. Exceeding this value may affect the audio performance and stability of the device.
To optimize the CS4207-CNZ for low power consumption, set the Power Control Register to disable unused features, reduce the clock frequency, and use the low-power modes (e.g., idle mode or shutdown mode) when not in use.
The recommended layout and routing for the CS4207-CNZ involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the clock signal traces to reduce jitter and noise.
