CS42438-DMZ - Cirrus Logic

Description: Interface - CODECs 6-In 8-Out TDM CODEC 108 dB 192 kHz

Download CS42438-DMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CS42438-DMZ - Cirrus Logic - PCB symbol
click to zoom
PCB Footprints

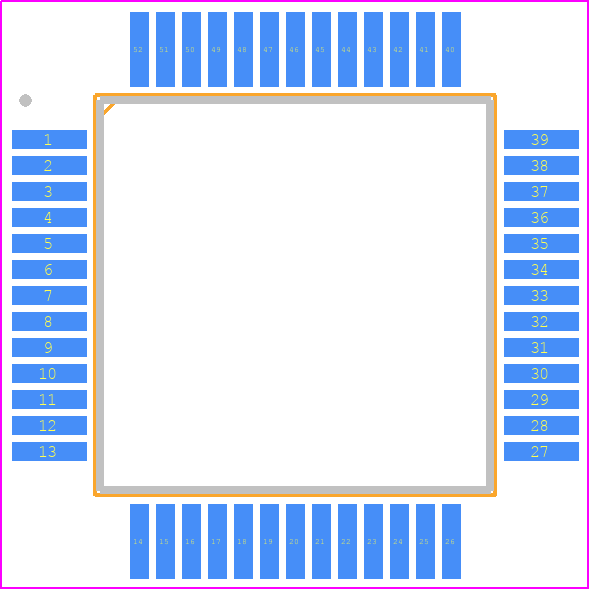

CS42438-DMZ - Cirrus Logic PCB footprint - Quad Flat Packages - Quad Flat Packages - 52L MQFP
click to zoom
3D Models
CS42438-DMZ - Cirrus Logic - 3D model - Quad Flat Packages - 52L MQFP
click to zoom

CS42438-DMZ Details

  • Manufacturer Part Number:

    CS42438-DMZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    LEAD FREE, MS-022, MQFP-52

  • Pin Count:

    52

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    Cirrus Logic

  • YTEOL:

    0

  • Additional Feature:

    ALSO REQUIRES 3.14V TO 3.47V DIGITAL SUPPLY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G52

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    52

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP52,.52SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.45 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    3.14 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

CS42438-DMZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply analog power (AVDD) first, followed by digital power (DVDD), and then bring the reset pin (RST) high.
  • To configure the CS42438-DMZ for master clock mode, set the MCLK pin as an output by setting the MCLKOE bit in the Clock Control Register (0x10). Then, set the desired clock frequency using the MCLKDIV registers (0x11-0x12).
  • The maximum allowed capacitance for the analog input filters is 10nF. Exceeding this value may affect the device's performance and stability.
  • To optimize the CS42438-DMZ for low power consumption, disable unused features and interfaces, reduce the clock frequency, and use the power-down modes (e.g., ADC power-down, DAC power-down) when not in use.
  • The recommended layout and routing for the CS42438-DMZ involves separating analog and digital signals, using a solid ground plane, and minimizing signal trace lengths and vias. Refer to the Cirrus Logic application note AN215 for more detailed guidelines.
