The recommended power-up sequence is to apply VDD first, followed by VCC, and then the analog power supplies (AVDD and DVDD). This ensures proper device operation and prevents latch-up.
To optimize ADC performance, ensure proper PCB layout, use a low-noise power supply, and optimize the analog input signal conditioning. Additionally, adjust the ADC clock frequency and sampling rate to suit your application's requirements.
The maximum allowed input signal amplitude is 2.5Vpp differential, which is the maximum rating for the device. Exceeding this amplitude may result in distortion, clipping, or even device damage.
The CS5340-CZZR outputs 24-bit data in a serial format. Ensure proper synchronization with the clock signal (SCLK) and frame signal (FSYNC) to correctly capture and process the output data.
The internal voltage reference (VREF) pin provides a stable voltage reference for the ADC. It can be used as a reference for external circuitry or as a voltage source for other components in the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS5340-CZZR Overview

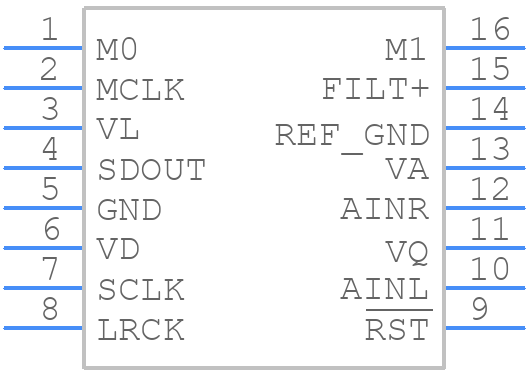

Use the download button to access the CS5340-CZZR schematic symbol, PCB footprint, and 3D model.
