CS5341-CZZ - Cirrus Logic

Description: Cirrus Logic CS5341-CZZ, 24 bit Serial ADC, Dual, 16-Pin TSSOP

Download CS5341-CZZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

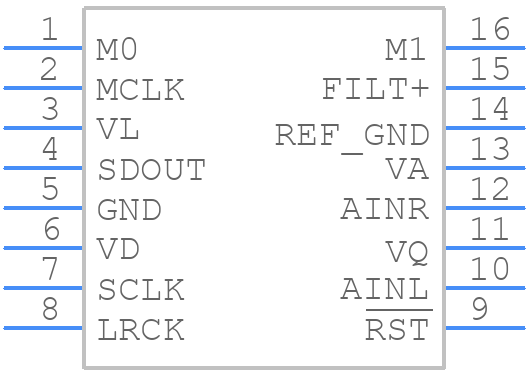

CS5341-CZZ - Cirrus Logic - PCB symbol
click to zoom
PCB Footprints
CS5341-CZZ - Cirrus Logic PCB footprint - Small Outline Packages - Small Outline Packages - 16L TSSOP
click to zoom
3D Models
CS5341-CZZ - Cirrus Logic - 3D model - Small Outline Packages - 16L TSSOP
click to zoom

CS5341-CZZ Details

  • Manufacturer Part Number:

    CS5341-CZZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Cirrus Logic

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    2.94 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.192 MHz

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

CS5341-CZZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VCC, and then the analog power supplies (AVDD and DVDD). This ensures proper device operation and prevents latch-up.
  • The CS5341-CZZ can be configured for differential or single-ended analog input by setting the appropriate pins (AINP, AINN, and AINCM) and adjusting the internal gain settings. Refer to the datasheet for specific pin configurations and gain settings.
  • The maximum input signal amplitude for the CS5341-CZZ is ±2.5Vpp differential or ±5Vpp single-ended, depending on the gain setting and input configuration.
  • To optimize the CS5341-CZZ for low power consumption, use the power-down mode (PD pin), reduce the clock frequency, and adjust the internal bias currents. Additionally, consider using the device's built-in power-saving features, such as the auto-power-down mode.
  • The recommended clock frequency range for the CS5341-CZZ is 2.4 MHz to 50 MHz, with a typical frequency of 12.288 MHz for audio applications.
