The recommended power-up sequence is to apply VDD first, followed by VCC, and then the analog power supplies (AVDD and DVDD). This ensures proper device operation and prevents latch-up.
To optimize ADC performance, ensure proper PCB layout, use a low-noise power supply, and implement a stable clock source. Additionally, adjust the ADC's input range and gain settings to match your signal requirements.
Use a high-quality, low-jitter clock source, such as a crystal oscillator or a phase-locked loop (PLL). Ensure the clock signal is properly terminated and routed to minimize jitter and noise.
The CS5343-CZZR outputs 24-bit data in a serial format. Use a suitable digital interface, such as SPI or I2S, to transmit the data to a microcontroller or digital signal processor. Ensure proper data synchronization and formatting according to your system's requirements.
Ensure good airflow around the device, and use a heat sink or thermal pad if necessary. Keep the device within the recommended operating temperature range (–40°C to +85°C) to prevent overheating and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS5343-CZZR Overview

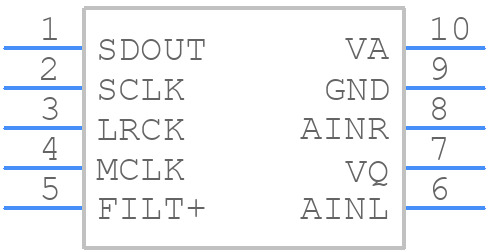

Use the download button to access the CS5343-CZZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS534,
or try a keyword search, such as Analog to Digital Converters
