The recommended power-up sequence is to apply VDD (analog power) first, followed by VCC (digital power), and then the clock signal. This ensures proper device initialization and prevents potential latch-up conditions.
To optimize the analog input impedance, use a high-impedance source, such as a buffer amplifier, and ensure the input signal is properly terminated. Additionally, consider using a series resistor and capacitor to filter out high-frequency noise.
The CS5368-CQZR supports clock frequencies up to 216 kHz, but the maximum frequency may vary depending on the specific application and system requirements. Consult the datasheet and application notes for more information.
To minimize clock jitter and phase noise, use a high-quality clock source, such as a crystal oscillator, and ensure the clock signal is properly filtered and decoupled. Additionally, consider using a clock jitter attenuator or a phase-locked loop (PLL) to further reduce jitter and noise.
To ensure optimal performance, follow good layout and routing practices, such as separating analog and digital signals, using ground planes, and minimizing signal trace lengths. Consult the datasheet and application notes for specific layout and routing guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS5368-CQZR Overview

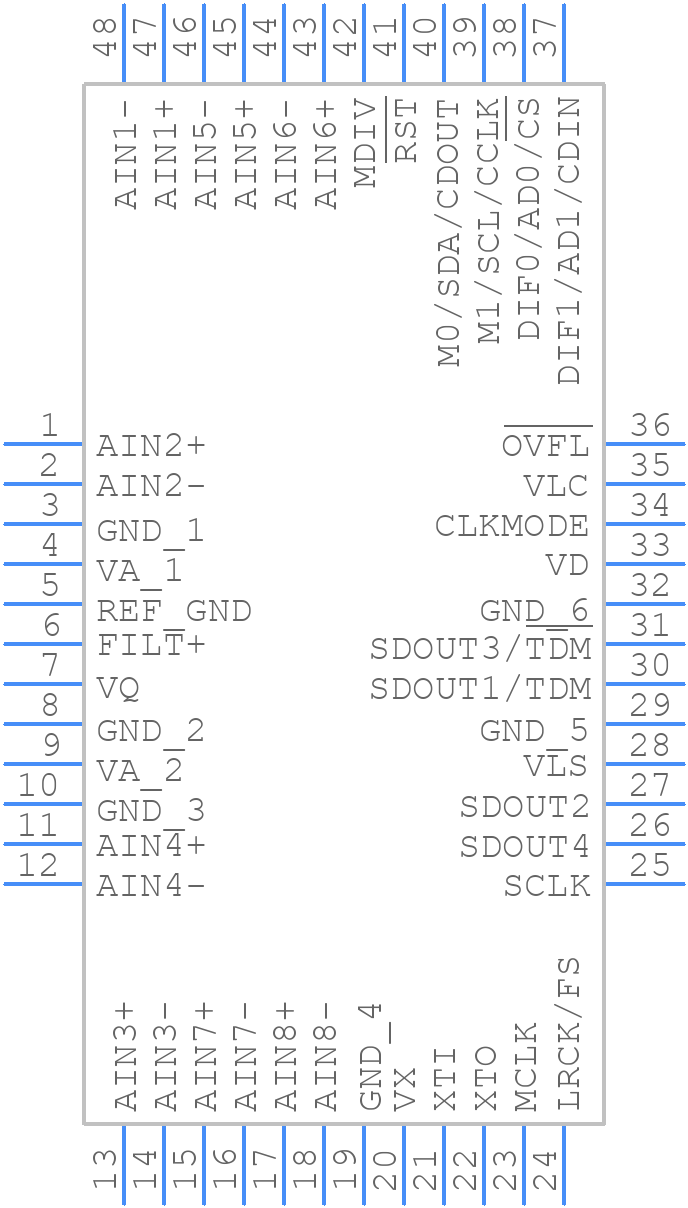

Use the download button to access the CS5368-CQZR schematic symbol and PCB footprint.
