CS53L30-CWZR - Cirrus Logic

Description: IC ADC/AUDIO 24BIT 16K 30WLCSP

Download CS53L30-CWZR Model

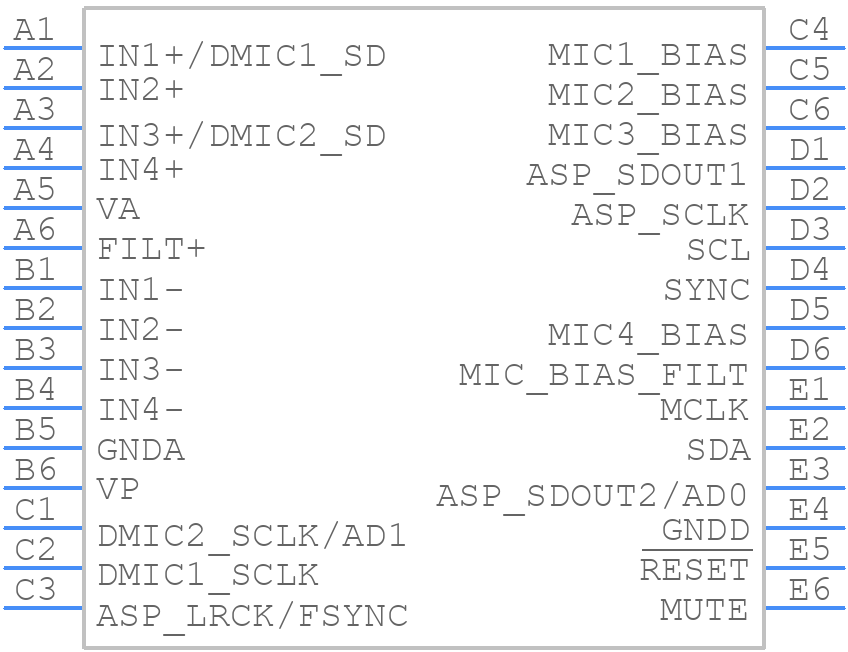

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CS53L30-CWZR - Cirrus Logic PCB footprint - BGA - BGA - BGA30
click to zoom
3D Models
CS53L30-CWZR - Cirrus Logic  - 3D model - BGA - BGA30
click to zoom

CS53L30-CWZR Details

  • Manufacturer Part Number:

    CS53L30-CWZR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Cirrus Logic

  • YTEOL:

    0

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PBGA-B30

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    4

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Output Bit Code:

    OFFSET BINARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA30,5X6,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

CS53L30-CWZR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the CS53L30-CWZR is a 4-layer board with a solid ground plane on the bottom layer, and a split power plane on the top layer. This helps to reduce noise and improve EMI performance.
  • To optimize the performance of the CS53L30-CWZR in a noisy environment, use a low-pass filter on the input signal, and ensure that the device is properly shielded and grounded. Additionally, use a high-quality power supply and decouple the power pins with capacitors.
  • The maximum input signal amplitude that the CS53L30-CWZR can handle is 2.5Vrms. Exceeding this amplitude may result in distortion and decreased performance.
  • To configure the CS53L30-CWZR for differential input, connect the positive input signal to the IN+ pin and the negative input signal to the IN- pin. For single-ended input, connect the input signal to the IN+ pin and ground the IN- pin.
  • The recommended clock frequency for the CS53L30-CWZR is 12.288MHz, but it can operate with clock frequencies between 10MHz and 20MHz.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CS53L30-CWZR Overview

Use the download button to access the CS53L30-CWZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS53L, or try a keyword search, such as Analog to Digital Converters
