The recommended power-up sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization and prevents damage to the device.
To configure the CS8416-CZZ for master mode operation, set the M/S pin high, and ensure that the BCLK pin is driven by an external clock source. Additionally, configure the device's registers to select the desired clock frequency and format.
The CS8416-CZZ supports clock frequencies up to 192 kHz, but the maximum frequency may vary depending on the specific application and system requirements.
To minimize clock jitter and skew, use a high-quality clock source, ensure proper PCB layout and routing, and consider using a clock buffer or jitter attenuator if necessary. Additionally, follow the recommended layout guidelines and decoupling schemes to reduce noise and interference.
Key considerations for PCB layout and routing include keeping analog and digital signals separate, using a solid ground plane, and minimizing trace lengths and impedance mismatches. Additionally, ensure that the device's power pins are properly decoupled and that the PCB is designed to minimize electromagnetic interference (EMI).
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CS8416-CZZ Overview

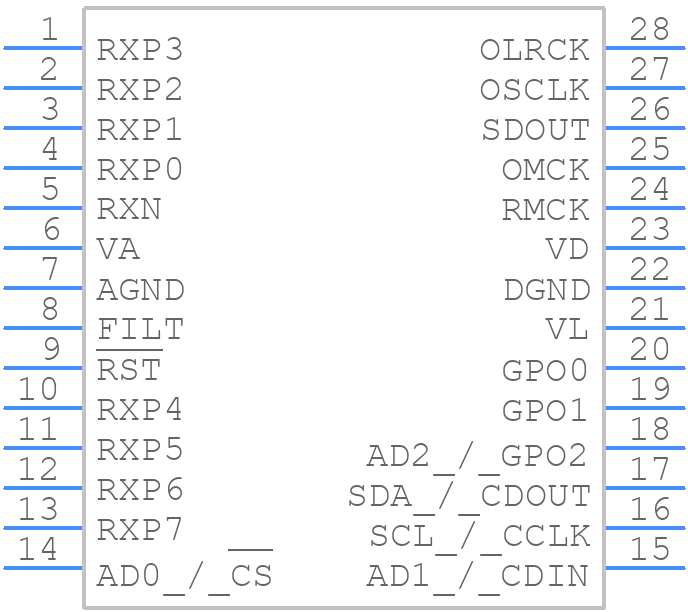

Use the download button to access the CS8416-CZZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS841,
or try a keyword search, such as Other Consumer ICs
