- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CS8422-CNZR
- Part Number CS8422-CNZR
- Manufacturer Cirrus Logic
- Pin Count 33
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 32 PIN QFN PLASTIC PACKAGE 5 X 5 X 0.9+ mm BODY, 0.50 mm LEAD PITCH
- Released Date Mar 28, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
CS8422-CNZR Details
-
Manufacturer Part Number:
CS8422-CNZR
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
QFN
-
Package Description:
5 X 5 MM, LEAD FREE, MO-220, QFN-32
-
Pin Count:
32
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Cirrus Logic
-
YTEOL:
0
-
Consumer IC Type:
CONSUMER CIRCUIT
-
JESD-30 Code:
S-XQCC-N32
CS8422-CNZR Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures proper device initialization and prevents potential latch-up conditions.
-
The CS8422-CNZR can be configured for master or slave mode by setting the M/S pin high or low, respectively. In master mode, the device generates the clock signal, while in slave mode, it receives the clock signal from an external source.
-
The digital filter coefficients are used to customize the audio signal processing in the CS8422-CNZR. They allow for fine-tuning of the audio signal's frequency response, gain, and other parameters to optimize the audio quality for specific applications.
-
The CS8422-CNZR supports various audio data formats, such as I2S, DSP, and Right-Justified. The device's audio data formatting and routing can be configured through the control registers, allowing for flexible audio signal processing and routing.
-
The CS8422-CNZR is a high-performance device that can generate heat during operation. To ensure reliable operation, it's essential to provide adequate thermal management, such as heat sinks, thermal pads, or other cooling mechanisms, to keep the device within its recommended operating temperature range.
Trust Checks
Community Provided
System Verified
Community Approved
CS8422-CNZR Overview

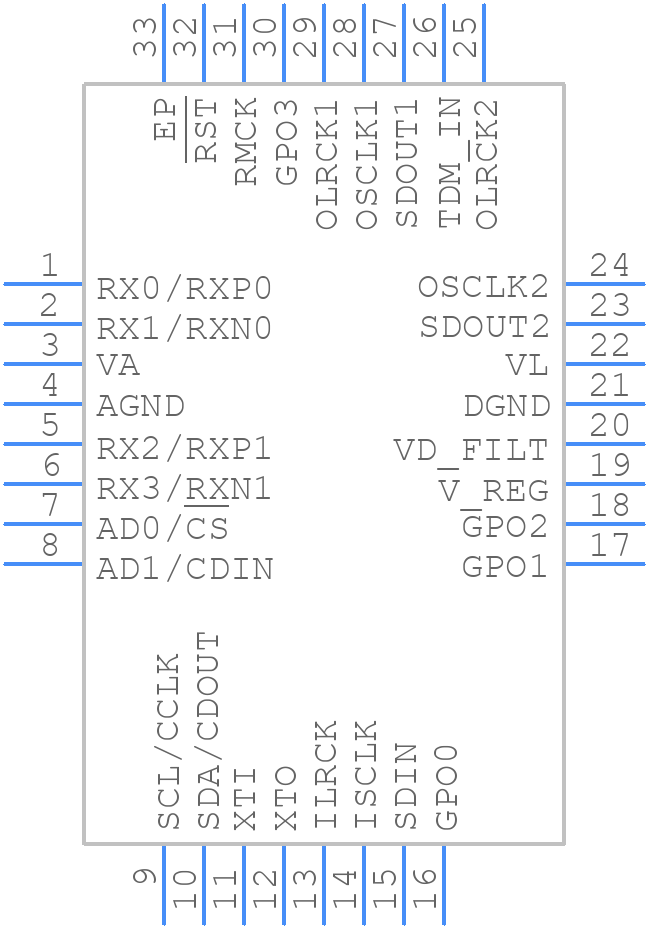

Use the download button to access the CS8422-CNZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS842,
or try a keyword search, such as Other Consumer ICs
