CS8427-CS - Cirrus Logic

Description: Digital Audio Interface Transceiver 1TX 1RX 28-Pin SOIC - Bulk

Download CS8427-CS Model

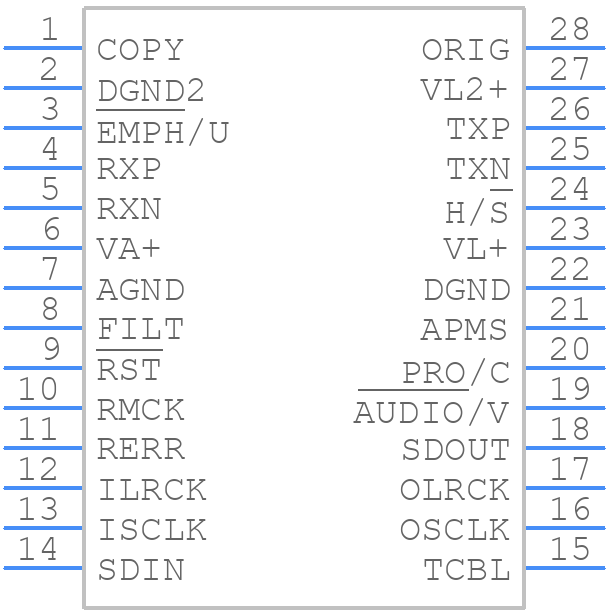

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CS8427-CS - Cirrus Logic PCB footprint - Small Outline Packages - Small Outline Packages - 28L SOIC (300 MIL BODY) PACKAGE DRAWING-
click to zoom
3D Models
CS8427-CS - Cirrus Logic  - 3D model - Small Outline Packages - 28L SOIC (300 MIL BODY) PACKAGE DRAWING-
click to zoom

CS8427-CS Details

  • Manufacturer Part Number:

    CS8427-CS

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    0.300 INCH, MS-013, SOIC-28

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Cirrus Logic

  • YTEOL:

    0

  • Additional Feature:

    IT ALSO REQUIRES 2.85V TO 5.5V SUPPLY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e0

  • Length:

    17.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

CS8427-CS Frequently Asked Questions (FAQs)

  • The recommended clock source is a high-quality, low-jitter clock source, such as a crystal oscillator or a phase-locked loop (PLL) clock generator. A clock source with a jitter of less than 100 ps is recommended.
  • To configure the CS8427-CS for Master Mode operation, set the M/S pin high, and ensure that the BCK pin is driven by the CS8427-CS. Additionally, configure the device for the desired audio format and clock rate using the SPI interface.
  • The maximum cable length supported by the CS8427-CS is approximately 10 meters (33 feet) for AES3 and 5 meters (16 feet) for I2S, assuming a high-quality, shielded cable with a characteristic impedance of 110 ohms.
  • To handle clock domain crossing, use a clock domain crossing circuit or a FIFO buffer to synchronize the data and clock signals between the transmitter and receiver. Ensure that the clock domains are properly synchronized to prevent data corruption or loss.
  • The power consumption of the CS8427-CS varies depending on the operating mode and clock rate. Typically, the device consumes around 150 mW in Master Mode and 100 mW in Slave Mode, assuming a 3.3V supply voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CS8427-CS Overview

Use the download button to access the CS8427-CS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CS842, or try a keyword search, such as Other Consumer ICs

Parts related to CS8427-CS

Showing 0 results

CS8427-CS Alternates

Showing results

Image Part Number Model
Part Image CS8427-CS Crystal Semiconductor Corp

Consumer Circuit, PDSO28
