TI provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the high-current paths short, using thick copper traces, and minimizing inductance. Additionally, ensure the thermal pad is connected to a solid ground plane to improve heat dissipation.
The input capacitor values depend on the input voltage, output voltage, and desired ripple current. TI recommends using X7R or X5R ceramic capacitors with a minimum capacitance of 10uF. A good starting point is to use 22uF or 33uF capacitors, and then adjust based on the specific application requirements.
The maximum allowed junction temperature (Tj) for the CSD87503Q3E is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
Proper thermal management is crucial for the CSD87503Q3E. Ensure the device is mounted on a heat sink or a thermal pad, and the PCB is designed to dissipate heat efficiently. Use thermal interface materials (TIMs) to improve heat transfer between the device and the heat sink.
Not using a bootstrap capacitor can lead to reduced performance, increased power losses, and potential device damage. The bootstrap capacitor helps to generate the necessary gate drive voltage for the high-side FET. Without it, the device may not function correctly or may experience premature failure.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CSD87503Q3E Overview

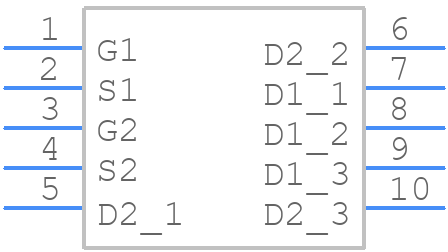

Use the download button to access the CSD87503Q3E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CSD87,
or try a keyword search, such as Power Field-Effect Transistors
