CSD95378BQ5MT - Texas Instruments

Description: 60A Synchronous Buck NexFET™ Smart Power Stage with TAO offset

Download CSD95378BQ5MT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

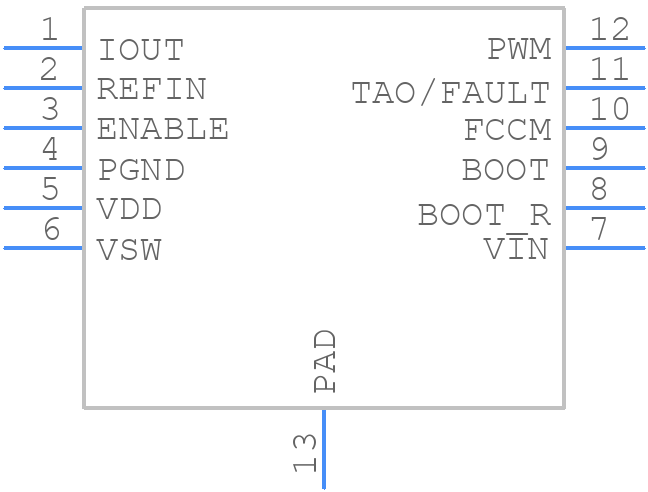

CSD95378BQ5MT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CSD95378BQ5MT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - CSD95378BQ5MT
click to zoom
3D Models
CSD95378BQ5MT - Texas Instruments - 3D model - Small Outline No-lead - CSD95378BQ5MT
click to zoom

CSD95378BQ5MT Details

  • Manufacturer Part Number:

    CSD95378BQ5MT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    16 V

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    90 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.5 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1250 kHz

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

CSD95378BQ5MT Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the CSD95378BQ5MT is -40°C to 150°C.
  • To ensure proper biasing, connect the input voltage (VIN) to a stable voltage source, and decouple the input with a 10uF capacitor. Additionally, ensure the output voltage (VOUT) is properly decoupled with a 10uF capacitor.
  • To minimize noise and EMI, use a 4-layer PCB with a solid ground plane, and place the CSD95378BQ5MT near the input capacitors. Keep the input and output traces short and separate, and use a shielded inductor if possible.
  • To calculate the output voltage ripple, use the following formula: ΔVOUT = (IOUT * ESL) / (COUT * fSW), where ESL is the equivalent series inductance of the output capacitor, COUT is the output capacitance, and fSW is the switching frequency.
  • The recommended input capacitor type is a ceramic capacitor with a value of 10uF to 22uF, with an X5R or X7R dielectric, and a voltage rating of 10V to 25V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CSD95378BQ5MT Overview

Use the download button to access the CSD95378BQ5MT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CSD95, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
