CSD95379Q3M footprint, schematic symbol and 3D model by Texas Instruments

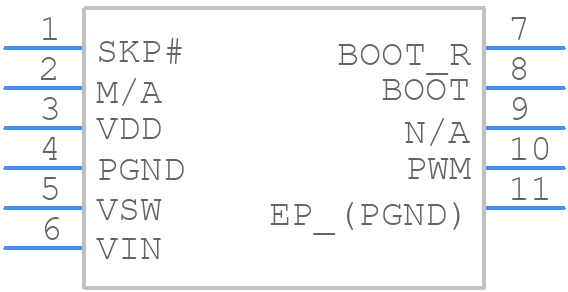

Symbol

click to zoom

PCB Footprints

CSD95379Q3M - Texas Instruments PCB footprint - Other - Other - DNS

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CSD95379Q3M
Part Number CSD95379Q3M
Manufacturer Texas Instruments
Pin Count 11
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - DNS
Released Date Jul 5, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

CSD95379Q3M Details

Manufacturer Part Number:
CSD95379Q3M
Brand Name:
Texas Instruments
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8542.39.00.90
Manufacturer:
Texas Instruments
YTEOL:
15
Additional Feature:
ALSO REQ VIN UPTO 16V MAX
Analog IC - Other Type:
DUAL SWITCHING CONTROLLER
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
5.5 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
5 V
JESD-30 Code:
S-PDSO-N10
JESD-609 Code:
e4
Length:
3.3 mm
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Terminals:
10
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
45 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2000 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.3 mm

CSD95379Q3M Frequently Asked Questions (FAQs)

The maximum operating temperature range for the CSD95379Q3M is -40°C to 150°C.
To ensure proper biasing, connect the VIN pin to a stable voltage source, and the VOUT pin to a load or a voltage regulator. Also, ensure the input voltage is within the recommended range (4.5V to 60V) and the output voltage is within the specified range (1.5V to 40V).
For optimal PCB layout, place the CSD95379Q3M near the input capacitors and ensure a low-impedance path between the input and output. Use a solid ground plane, and keep the high-current paths short and wide. Also, consider using thermal vias to dissipate heat.
The output voltage (VOUT) can be calculated using the formula: VOUT = (VIN x (R1 / (R1 + R2))), where R1 and R2 are the resistors in the feedback network.
When selecting capacitors, consider the voltage rating, capacitance value, and equivalent series resistance (ESR). Choose capacitors with a voltage rating higher than the maximum input voltage, and ensure the capacitance value is sufficient to filter out ripple and noise.

Trust Checks

Expert Contribution

System Verified

Community Approved

CSD95379Q3M Overview

Use the download button to access the CSD95379Q3M schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like CSD95, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
