CXT5551-TP - MCC

Description: NPN Plastic Encapsulate Transistors 160 V 600 mA 100MHz 500 mW Surface Mount SOT-89

Download CXT5551-TP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

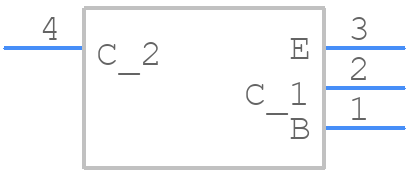

CXT5551-TP - MCC - PCB symbol
click to zoom
PCB Footprints

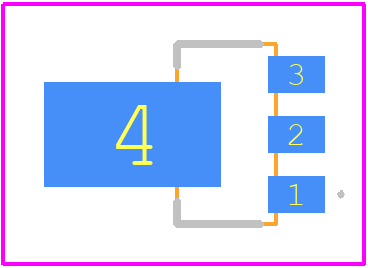

CXT5551-TP - MCC PCB footprint - Other - Other - CXT5551-TP-2
click to zoom
3D Models
CXT5551-TP - MCC - 3D model - Other - CXT5551-TP-2
click to zoom

CXT5551-TP Details

  • Manufacturer Part Number:

    CXT5551-TP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC PACKAGE-3

  • Pin Count:

    3

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Micro Commercial Components

  • YTEOL:

    7

  • Collector Current-Max (IC):

    0.6 A

  • Collector-Emitter Voltage-Max:

    160 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    80

  • JESD-30 Code:

    R-PSSO-F3

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    100 MHz

CXT5551-TP Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the CXT5551-TP is -40°C to 125°C.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground. Additionally, decouple the VCC pin with a 0.1uF capacitor to reduce noise and ensure stable operation.
  • The maximum input voltage that the CXT5551-TP can handle is 6V. Exceeding this voltage may cause damage to the device.
  • To troubleshoot issues with the oscillator circuit, check the crystal resonator's frequency and load capacitance, ensure proper power supply decoupling, and verify that the oscillator pins are not loaded with excessive capacitance or resistance.
  • While the CXT5551-TP is a general-purpose timer IC, it may not meet the specific requirements for high-reliability or automotive applications. It's recommended to consult with Micro Commercial Components or a qualified engineer to determine the suitability of the CXT5551-TP for such applications.
