The recommended operating voltage range for CY74FCT2257ATQCT is 4.5V to 5.5V, as specified in the datasheet. However, it's recommended to operate the device at a stable voltage of 5V ± 10% for optimal performance.
To ensure signal integrity, it's essential to follow proper PCB design and layout guidelines, such as using controlled impedance traces, minimizing signal routing, and adding termination resistors as needed. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design.
The maximum clock frequency supported by CY74FCT2257ATQCT is 100 MHz, as specified in the datasheet. However, the actual clock frequency may be limited by the system's noise margin, signal integrity, and other factors.
When using CY74FCT2257ATQCT in a system with multiple power rails, it's essential to ensure that the power rails are sequenced correctly to prevent damage to the device. The datasheet recommends powering up the VCC rail before the input signals, and powering down the input signals before the VCC rail.
The thermal derating for CY74FCT2257ATQCT is specified in the datasheet as 1.5°C/W. This means that for every 1°C increase in ambient temperature, the device's maximum power dissipation decreases by 1.5°C/W. It's essential to consider thermal derating when designing the system to ensure the device operates within its recommended temperature range and to prevent overheating, which can affect its reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CY74FCT2257ATQCT Overview

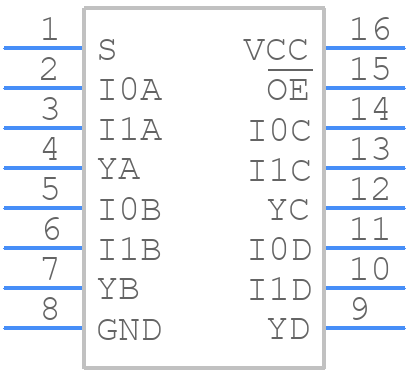

Use the download button to access the CY74FCT2257ATQCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY74F,
or try a keyword search, such as Multiplexer/Demultiplexers
