CY8C20110-LDX2I - Infineon

Description: CY8C20110-LDX2I, Capacitive Touch Screen Controller Serial-I2C 2-Wire, 16-Pin QFN

Download CY8C20110-LDX2I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

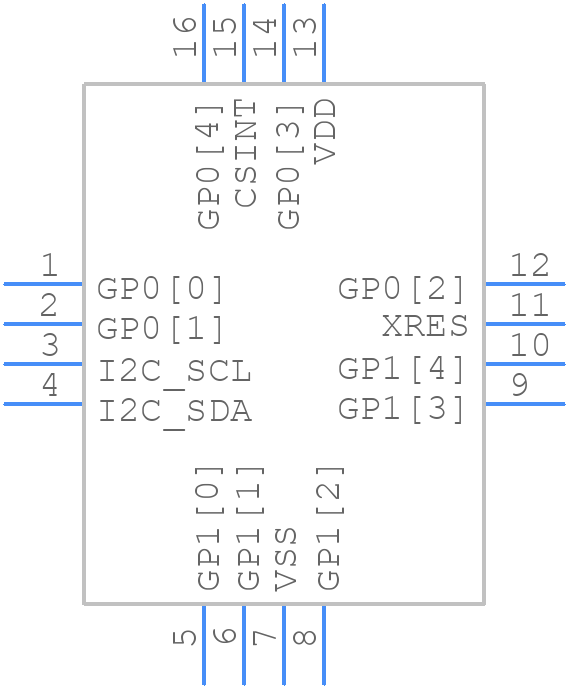

CY8C20110-LDX2I - Infineon - PCB symbol
click to zoom
PCB Footprints
CY8C20110-LDX2I - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-pin Chip On Lead (3 × 3 × 0.6 mm) LG16A/LD16A (Sawn) Package Outline, 001-09116_1
click to zoom
3D Models
CY8C20110-LDX2I - Infineon - 3D model - Quad Flat No-Lead - 16-pin Chip On Lead (3 × 3 × 0.6 mm) LG16A/LD16A (Sawn) Package Outline, 001-09116_1
click to zoom

CY8C20110-LDX2I Details

  • Manufacturer Part Number:

    CY8C20110-LDX2I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    20

  • uPs/uCs/Peripheral ICs Type:

    CAPACITIVE TOUCH SCREEN CONTROLLER

CY8C20110-LDX2I Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the CY8C20110-LDX2I is 50 MHz.
  • The CY8C20110-LDX2I has 16 KB of flash memory.
  • The maximum current consumption of the CY8C20110-LDX2I is 20 mA at 50 MHz.
  • Yes, the CY8C20110-LDX2I has a 12-bit, 12-channel analog-to-digital converter (ADC).
  • Yes, the CY8C20110-LDX2I has multiple low-power modes, including Sleep, Hibernate, and Stop modes, to reduce power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CY8C20110-LDX2I Overview

Use the download button to access the CY8C20110-LDX2I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CY8C2, or try a keyword search, such as Other Memory ICs
