- Part Number CYPD3176-24LQXQ
- Manufacturer Infineon
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 24-pin QFN-ren3
- Released Date Apr 17, 2023
- Last Modified Date Apr 17, 2023 9:29 AM UTC
- Pinout / Pin List Click Here (Member Only)
CYPD3176-24LQXQ Details
-
Manufacturer Part Number:
CYPD3176-24LQXQ
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
13 Weeks
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
6
-
Analog IC - Other Type:
USB PD CONTROLLER
-
Moisture Sensitivity Level:
3
CYPD3176-24LQXQ Frequently Asked Questions (FAQs)
-
Infineon provides a recommended PCB layout guide in their application note AN2151, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
-
The CYPD3176-24LQXQ is a programmable device, and configuration for USB PD applications requires setting up the device's registers using the I2C interface. Infineon provides a software development kit (SDK) and a configuration tool to simplify the process. Additionally, the device's datasheet and application notes provide detailed information on the required register settings and configuration options.
-
The CYPD3176-24LQXQ has an operating temperature range of -40°C to +105°C, as specified in the datasheet. However, it's essential to consider the device's thermal management and ensure that the junction temperature (Tj) does not exceed 125°C to maintain reliability and prevent thermal shutdown.
-
While the CYPD3176-24LQXQ is primarily designed for USB Type-C and Power Delivery applications, its programmable nature and analog-to-digital converter (ADC) capabilities make it suitable for other applications, such as power monitoring, voltage regulation, and fault detection. However, it's essential to consult with Infineon's technical support and evaluate the device's specifications to ensure it meets the requirements of the target application.
-
Infineon provides a range of tools and resources to help troubleshoot issues with the CYPD3176-24LQXQ, including a debug tool, application notes, and technical support. It's recommended to start by consulting the device's datasheet and application notes, and then contacting Infineon's technical support for further assistance.
Trust Checks
System Verified
CYPD3176-24LQXQ Overview

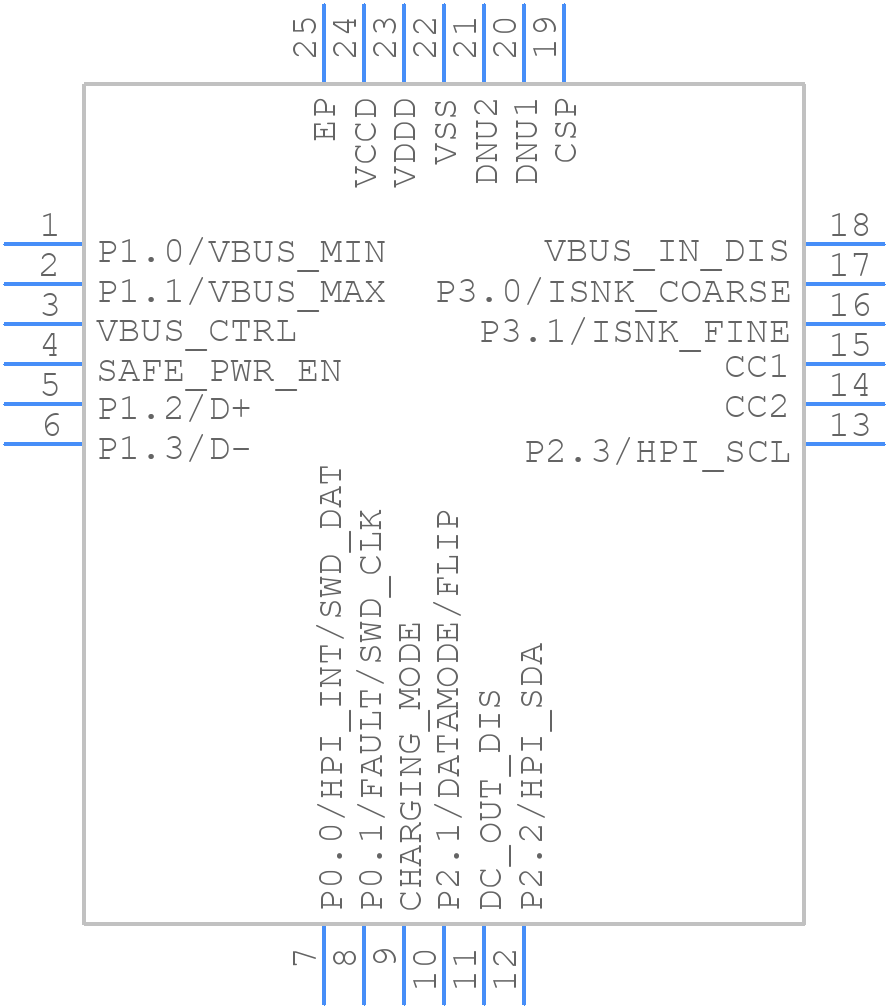

Use the download button to access the CYPD3176-24LQXQ schematic symbol, PCB footprint, and 3D model.
