Infineon provides a recommended PCB layout guide in the application note AN2151, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The CYPD7291-68LDXST is a programmable device, and configuration for USB-C PD applications requires programming the device using the Infineon-provided software development kit (SDK). The SDK includes example code and documentation to help engineers configure the device for specific PD applications.
The CYPD7291-68LDXST has an operating temperature range of -40°C to +105°C, as specified in the datasheet. However, it's essential to consider the thermal management of the device and the overall system design to ensure reliable operation within this temperature range.
While the CYPD7291-68LDXST is primarily designed for USB-C applications, it can be used for other USB applications with some modifications. However, this may require additional components and custom firmware development. It's recommended to consult with Infineon's technical support team to determine the feasibility of using the device for non-USB-C applications.
Infineon provides a range of tools and resources to help troubleshoot issues with the CYPD7291-68LDXST, including debuggers, oscilloscopes, and logic analyzers. Engineers can also consult the device's datasheet, application notes, and technical support resources for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CYPD7291-68LDXST Overview

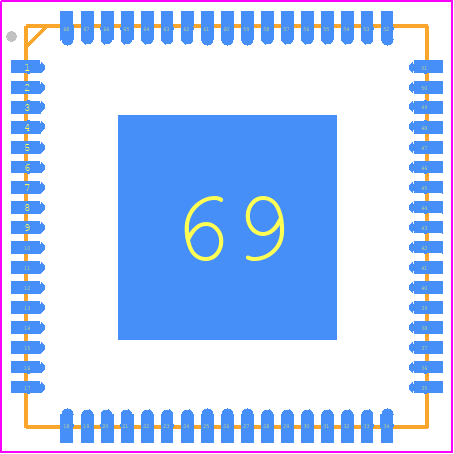

Use the download button to access the CYPD7291-68LDXST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CYPD7,
or try a keyword search, such as Power Management Circuits
