DA03-11CGKWA footprint, schematic symbol and 3D model by Kingbright

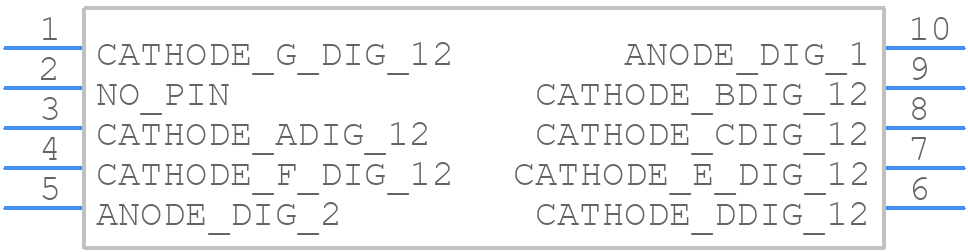

Symbol

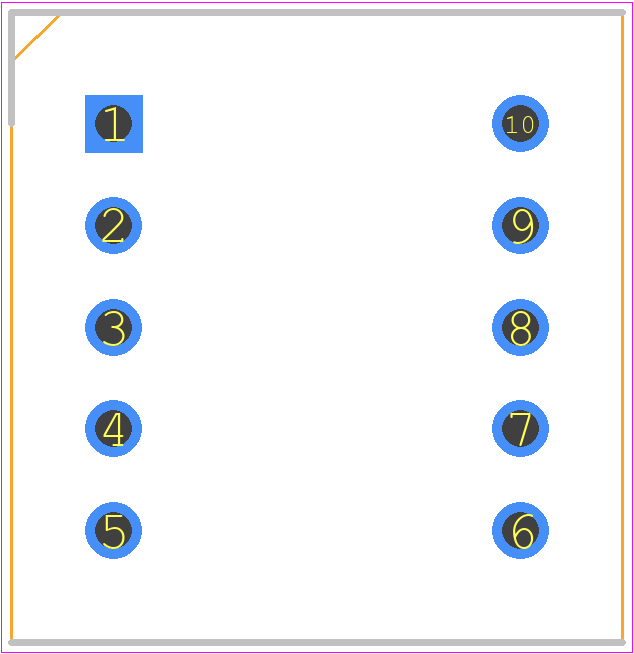

PCB Footprints

DA03-11CGKWA Details

The recommended operating temperature range for the DA03-11CGKWA is -20°C to 70°C, with a storage temperature range of -30°C to 80°C.
The DA03-11CGKWA can be interfaced with a microcontroller using a serial interface, such as SPI or I2C. The display requires a 5V power supply and can be controlled using a 3.3V or 5V logic level.
The typical current consumption of the DA03-11CGKWA is around 20mA, but this can vary depending on the brightness setting and the number of segments being driven.
The DA03-11CGKWA is suitable for indoor use only. If you need to use it in an outdoor application, you may need to add additional protection, such as a UV filter or a protective coating, to ensure the display remains readable in bright sunlight.
The brightness of the DA03-11CGKWA can be adjusted by applying a PWM signal to the display's enable pin. The duty cycle of the PWM signal determines the brightness of the display.

Community Provided

System Verified

Community Approved

Use the download button to access the DA03-11CGKWA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DA03-, or try a keyword search, such as LED Displays
