DA03-11EWA - Kingbright

Description: KINGBRIGHT - DA03-11EWA - DISPLAY, SEVEN SEGMENT, 7.62MM, RED

Download DA03-11EWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

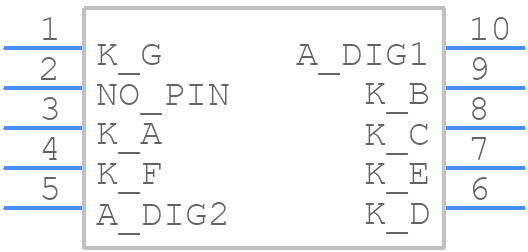

DA03-11EWA - Kingbright - PCB symbol
click to zoom
PCB Footprints
DA03-11EWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 7.62mm (0.3INCH) DUAL DIGIT NUMERIC DISPLAY
click to zoom
3D Models
DA03-11EWA - Kingbright - 3D model - Dual-In-Line Sockets - 7.62mm (0.3INCH) DUAL DIGIT NUMERIC DISPLAY
click to zoom

DA03-11EWA Details

  • Manufacturer Part Number:

    DA03-11EWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    HIGH EFFICIENCY RED

  • Color@Wavelength:

    Orange

  • Configuration:

    COMMON ANODE, MULTIPLEXED, 2 DIGITS

  • Display Height:

    7.62 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    2

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    625 nm

DA03-11EWA Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the DA03-11EWA is -20°C to 70°C.
  • To ensure reliability in high-humidity environments, it is recommended to apply a conformal coating to the LED display and ensure good sealing of the device.
  • The maximum forward current rating for the DA03-11EWA is 20mA per segment.
  • The DA03-11EWA can be interfaced with a microcontroller using a multiplexing technique, where each segment is connected to a digital output of the microcontroller.
  • The typical viewing angle for the DA03-11EWA is 60°.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DA03-11EWA Overview

Use the download button to access the DA03-11EWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DA03-, or try a keyword search, such as LED Displays
