DA04-11SRWA - Kingbright

Description: LED Displays & Accessories Dual Red 640nm Common Anode

Download DA04-11SRWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

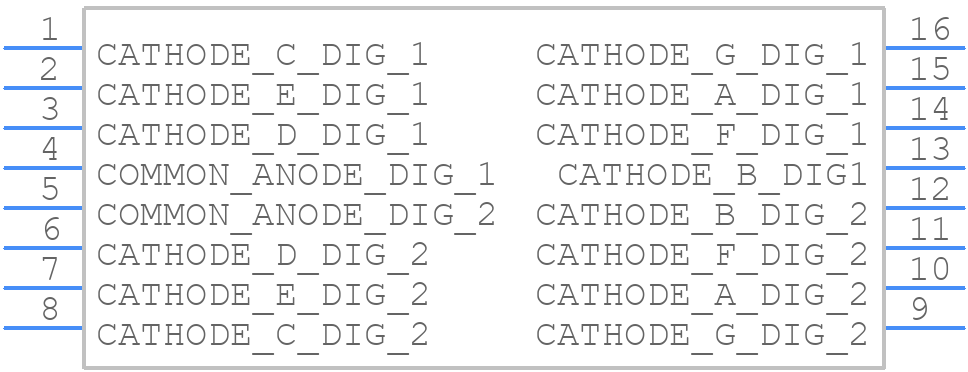

Symbol
DA04-11SRWA - Kingbright - PCB symbol
click to zoom

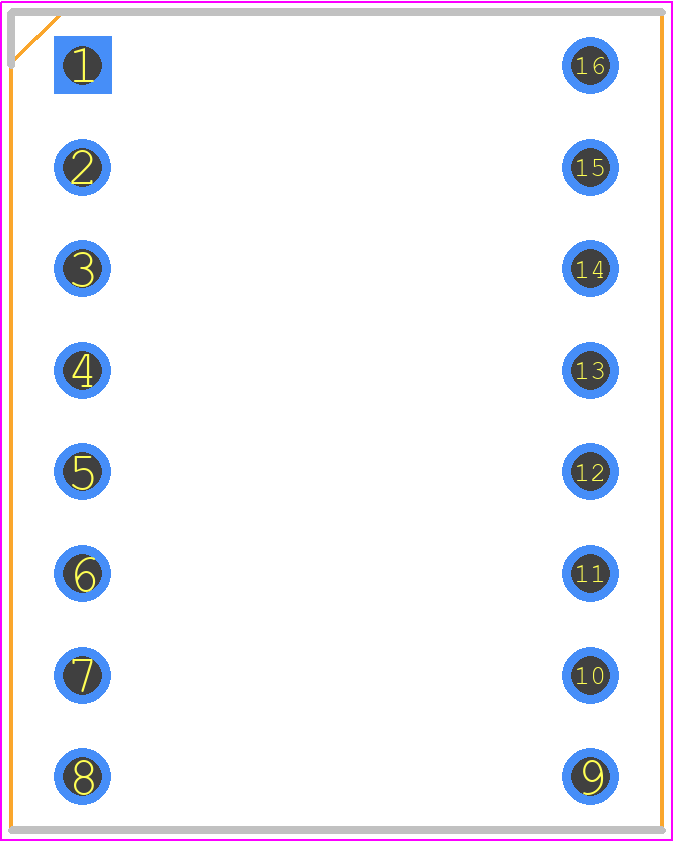

PCB Footprints
DA04-11SRWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DA04-11SRWA
click to zoom

DA04-11SRWA Details

  • Manufacturer Part Number:

    DA04-11SRWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    SUPER BRIGHT RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 2 DIGITS

  • Display Height:

    10 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    2

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    660 nm

DA04-11SRWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for DA04-11SRWA is -20°C to 30°C (-4°F to 86°F) to prevent damage to the LED.
  • Yes, DA04-11SRWA is suitable for outdoor applications, but it's recommended to use a protective coating or enclosure to prevent moisture and UV damage.
  • The maximum forward current for DA04-11SRWA is 20mA. Exceeding this current may reduce the LED's lifespan or cause damage.
  • Yes, DA04-11SRWA is compatible with lead-free soldering processes, but the recommended soldering temperature is 260°C (500°F) for a maximum of 10 seconds.
  • The typical luminous intensity of DA04-11SRWA is 10-20 mcd (millicandelas) at a viewing angle of 30°.
