DA08-11GWA - Kingbright

Description: DISPLAY 7SEG 0.8" DBL GRN 18DIP

Download DA08-11GWA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this DA08-11GWA model

Email notifications will be applied after download.

Send part feedback

Symbol

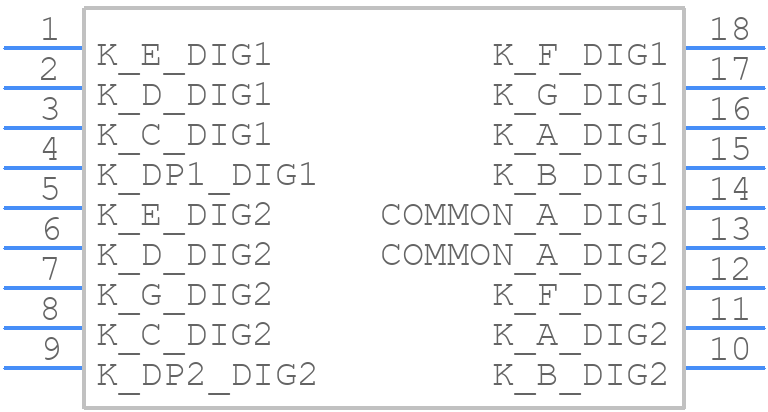

DA08-11GWA - Kingbright - PCB symbol

PCB Footprints

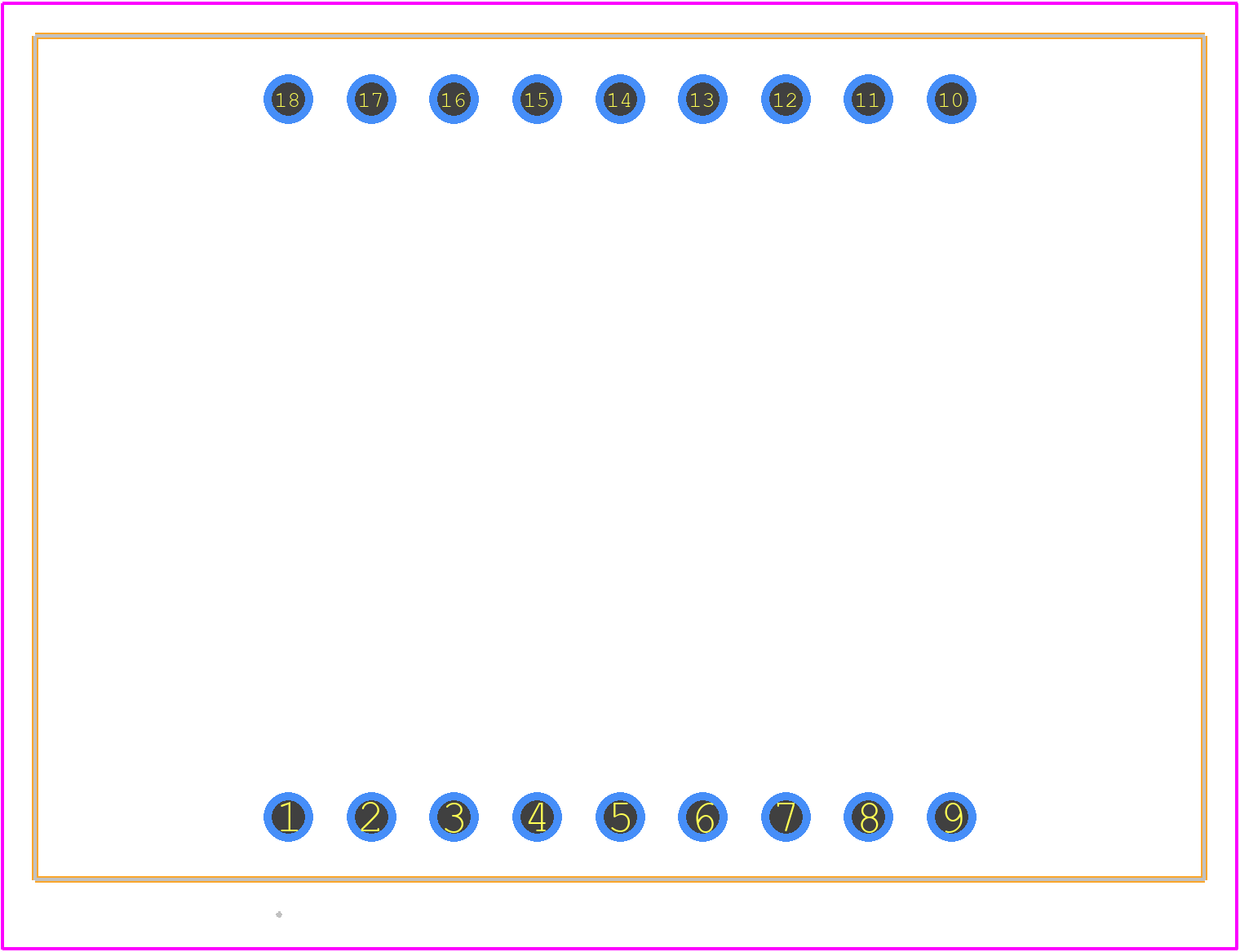

DA08-11GWA - Kingbright PCB footprint - Other - Other - DA08-11GWA-4

3D Models

DA08-11GWA - Kingbright - 3D model - Other - DA08-11GWA-4

Datasheet Download Datasheet
Stock & Prices Price & Stock for DA08-11GWA
Part Number DA08-11GWA
Manufacturer Kingbright
Pin Count 18
Part Category Display
Package Category Other
Footprint Name Other - DA08-11GWA-4
Released Date Jun 29, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DA08-11GWA Details

Manufacturer Part Number:
DA08-11GWA
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
Package Description:
ROHS COMPLIANT PACKAGE-18
Country Of Origin:
Mainland China
HTS Code:
8541.40.20.00
Manufacturer:
Kingbright
YTEOL:
6
Additional Feature:
IC COMPATIBLE
Color:
GREEN
Color@Wavelength:
Green
Configuration:
COMMON ANODE, 2 DIGITS WITH DECIMAL POINT
Display Height:
20.32 mm
Forward Current-Max:
0.025 A
Forward Voltage-Max:
2.5 V
Number of Characters:
2
Number of Functions:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
7 SEG NUMERIC LED DISPLAY
Peak Wavelength:
565 nm

DA08-11GWA Frequently Asked Questions (FAQs)

The recommended operating temperature range for the DA08-11GWA is -20°C to 70°C.
To ensure reliability in high-humidity environments, it is recommended to apply a conformal coating to the LED display and ensure good sealing of the device.
The maximum forward current rating for the DA08-11GWA is 20mA per segment.
The DA08-11GWA can be interfaced with a microcontroller using a multiplexing technique, where each segment is connected to a digital output of the microcontroller.
The typical viewing angle for the DA08-11GWA is 60°.

Trust Checks

Expert Contribution

System Verified

Community Approved

DA08-11GWA Overview

Use the download button to access the DA08-11GWA schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DA08-, or try a keyword search, such as LED Displays
