DA08-11SRWA - Kingbright

Description: LED Displays & Accessories Dual Red 640nm Common Anode

Download DA08-11SRWA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this DA08-11SRWA model

Email notifications will be applied after download.

Send part feedback

Symbol

DA08-11SRWA - Kingbright - PCB symbol

PCB Footprints

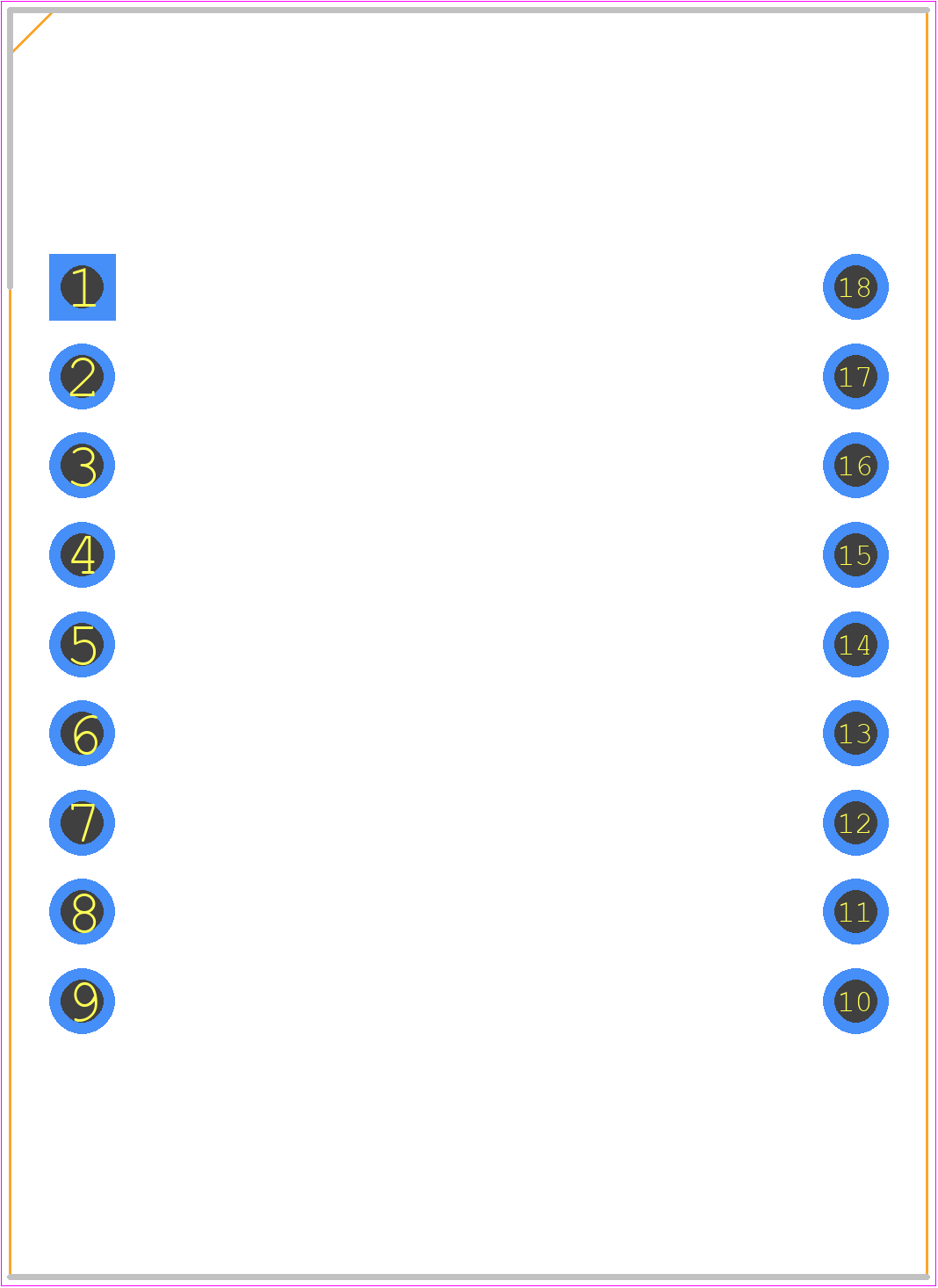

DA08-11SRWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DA08-11SRWA

Datasheet Download Datasheet
Stock & Prices Price & Stock for DA08-11SRWA
Part Number DA08-11SRWA
Manufacturer Kingbright
Pin Count 18
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - DA08-11SRWA
Released Date Jan 5, 2019
Last Modified Date Jun 22, 2023 2:40 AM UTC
Pinout / Pin List Click Here (Member Only)

DA08-11SRWA Details

Manufacturer Part Number:
DA08-11SRWA
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
End Of Life
Package Description:
ROHS COMPLIANT PACKAGE-18
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8541.40.20.00
Manufacturer:
Kingbright
YTEOL:
0.4
Additional Feature:
IC COMPATIBLE
Color:
SUPER BRIGHT RED
Color@Wavelength:
Red
Configuration:
COMMON ANODE, 2 DIGITS WITH DECIMAL POINT
Display Height:
20.32 mm
Forward Current-Max:
0.03 A
Forward Voltage-Max:
2.5 V
JESD-609 Code:
e3
Number of Characters:
2
Number of Functions:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
7 SEG NUMERIC LED DISPLAY
Peak Wavelength:
660 nm
Terminal Finish:
Tin (Sn)

DA08-11SRWA Frequently Asked Questions (FAQs)

The recommended storage temperature for the DA08-11SRWA is -20°C to 40°C (-4°F to 104°F).
Yes, the DA08-11SRWA is suitable for outdoor use, but it's recommended to use a protective coating or enclosure to prevent moisture and UV degradation.
The maximum forward current for the DA08-11SRWA is 20mA. Exceeding this current may reduce the LED's lifespan or cause damage.
Yes, the DA08-11SRWA is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C (500°F).
The typical luminous intensity of the DA08-11SRWA is 10-20 mcd (millicandelas) at a viewing angle of 30°.

Trust Checks

Community Provided

System Verified

Community Approved

DA08-11SRWA Overview

Use the download button to access the DA08-11SRWA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DA08-, or try a keyword search, such as LED Displays
