DA08-11SURKWA - Kingbright

Description: LED Displays & Accessories .8" DUAL DIGIT RED LED DISPLAY

Download DA08-11SURKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

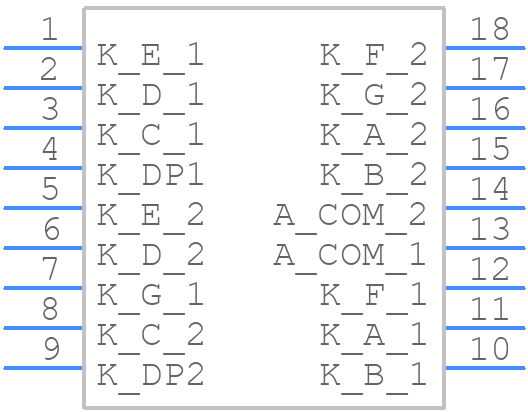

Symbol
DA08-11SURKWA - Kingbright - PCB symbol
click to zoom

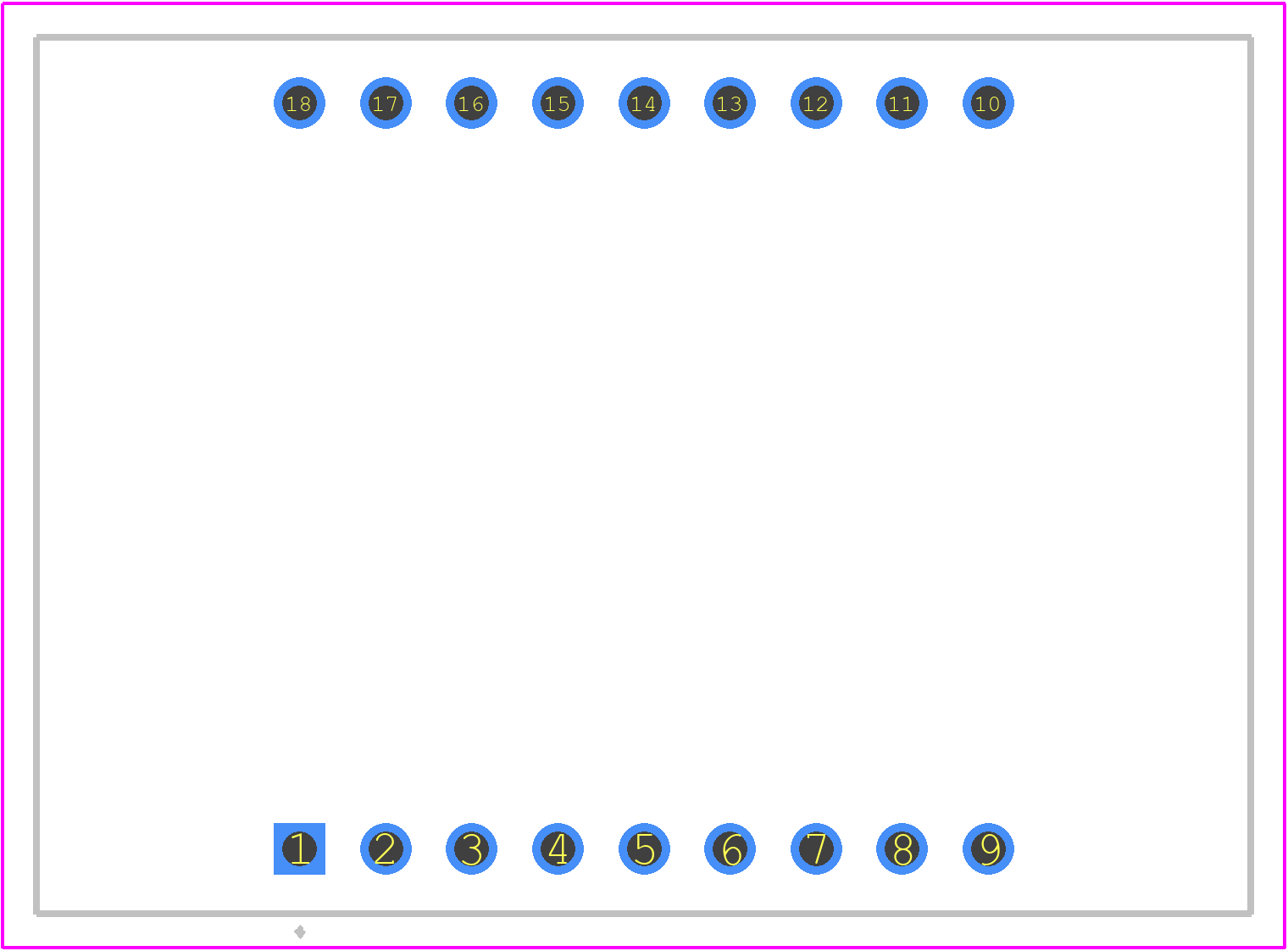

PCB Footprints
DA08-11SURKWA - Kingbright PCB footprint - Other - Other - DA08-11SURKWA-4
click to zoom
3D Models
DA08-11SURKWA - Kingbright - 3D model - Other - DA08-11SURKWA-4
click to zoom

DA08-11SURKWA Details

  • Manufacturer Part Number:

    DA08-11SURKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-18

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Configuration:

    COMMON ANODE, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    20.32 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

DA08-11SURKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for the DA08-11SURKWA is -30°C to 60°C.
  • Yes, the DA08-11SURKWA is suitable for outdoor applications, but it's recommended to use a protective coating or enclosure to protect it from environmental factors such as moisture and UV radiation.
  • The maximum allowable voltage for the DA08-11SURKWA is 5.5V. Exceeding this voltage may damage the device.
  • To ensure reliability in high-temperature applications, it's recommended to derate the current and voltage according to the temperature derating curve provided in the datasheet.
  • Yes, the DA08-11SURKWA can be used in high-humidity environments, but it's recommended to use a protective coating or enclosure to prevent moisture ingress.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DA08-11SURKWA Overview

Use the download button to access the DA08-11SURKWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DA08-, or try a keyword search, such as LED Displays
