DA56-11CGKWA footprint, schematic symbol and 3D model by Kingbright

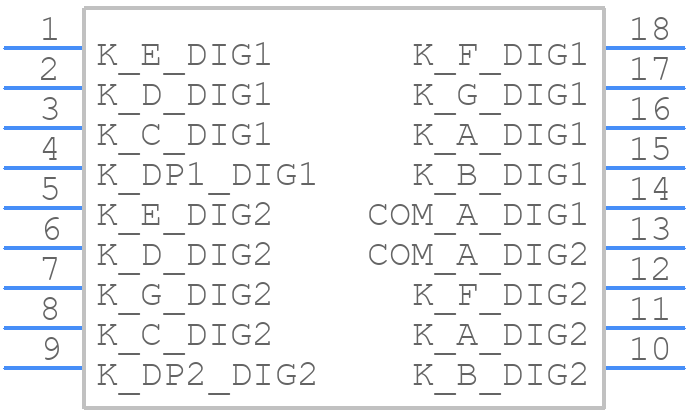

Symbol

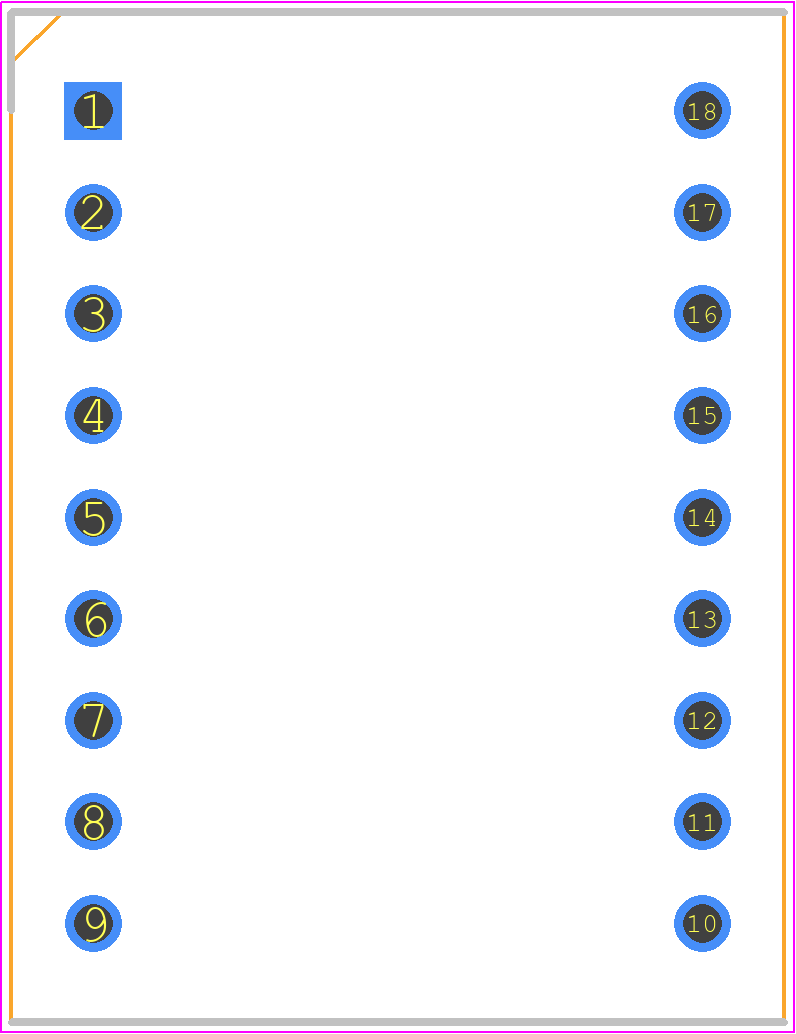

PCB Footprints

3D Models

DA56-11CGKWA Details

The recommended storage temperature range for the DA56-11CGKWA is -20°C to 60°C.
Yes, the DA56-11CGKWA is suitable for outdoor applications, but it's recommended to use a protective coating or enclosure to prevent moisture and UV damage.
The maximum operating temperature range for the DA56-11CGKWA is -20°C to 80°C.
Handle the DA56-11CGKWA in an ESD-safe environment, wear an ESD wrist strap, and use ESD-safe packaging and tools to prevent damage.
Yes, the DA56-11CGKWA can operate in high-humidity environments, but it's recommended to use a protective coating or enclosure to prevent moisture damage.

Community Provided

System Verified

Community Approved

Use the download button to access the DA56-11CGKWA schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DA56-, or try a keyword search, such as LED Displays
