DA56-11EWA - Kingbright

Description: Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Anode 2V 20mA 0.750" H x 0.984" W x 0.315" D (19.05mm x 25.00mm x 8.00mm) 18-DIP (0.600", 15.24mm)

Download DA56-11EWA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this DA56-11EWA model

Email notifications will be applied after download.

Send part feedback

Symbol

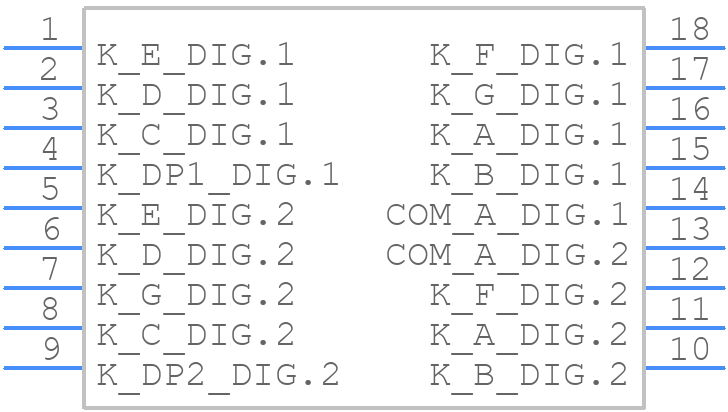

DA56-11EWA - Kingbright - PCB symbol

PCB Footprints

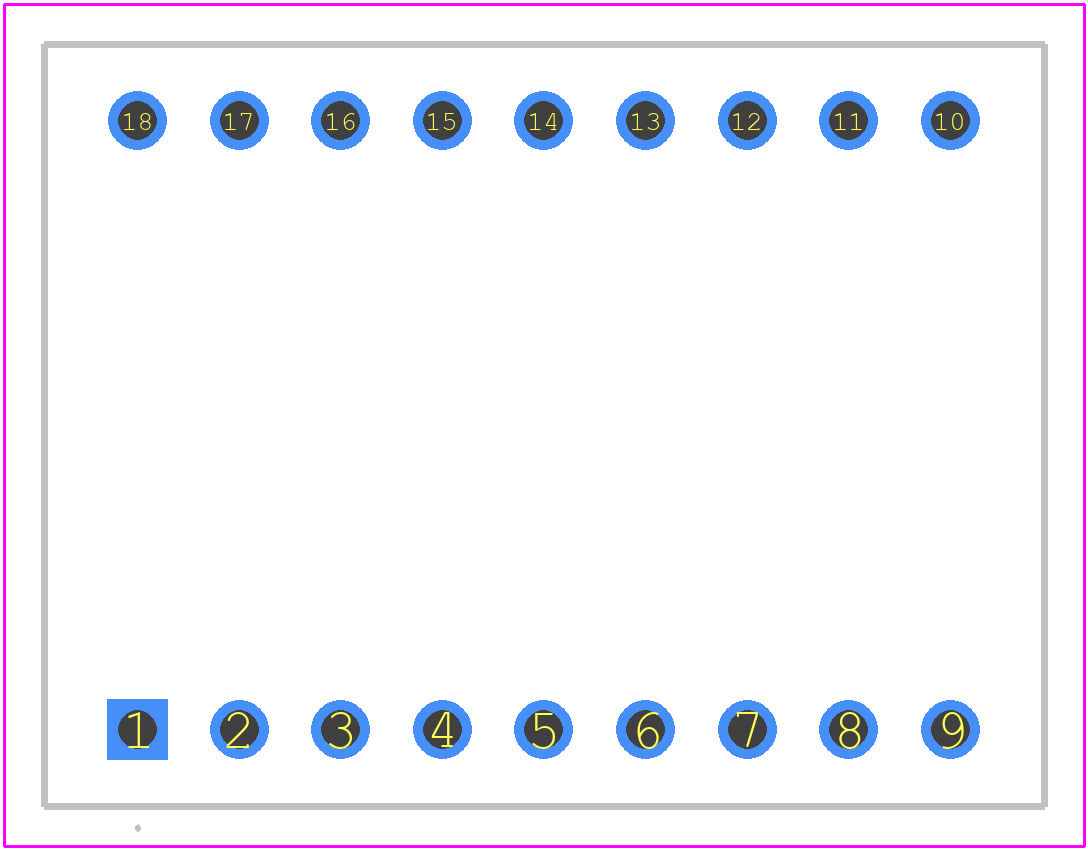

DA56-11EWA - Kingbright PCB footprint - Other - Other - 18-DIP_2025-1.5

3D Models

DA56-11EWA - Kingbright - 3D model - Other - 18-DIP_2025-1.5

Datasheet Download Datasheet
Stock & Prices Price & Stock for DA56-11EWA
Part Number DA56-11EWA
Manufacturer Kingbright
Pin Count 18
Part Category Display
Package Category Other
Footprint Name Other - 18-DIP_2025-1.5
Released Date Mar 14, 2016
Last Modified Date Sep 25, 2025 10:39 AM UTC
Pinout / Pin List Click Here (Member Only)

DA56-11EWA Details

Manufacturer Part Number:
DA56-11EWA
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
Package Description:
ROHS COMPLIANT PACKAGE-18
Country Of Origin:
Mainland China
HTS Code:
8541.40.20.00
Manufacturer:
Kingbright
YTEOL:
6
Additional Feature:
IC COMPATIBLE
Color:
HIGH EFFICIENCY RED
Color@Wavelength:
Orange
Configuration:
COMMON ANODE, 2 DIGITS WITH DECIMAL POINT
Display Height:
14.22 mm
Forward Current-Max:
0.03 A
Forward Voltage-Max:
2.5 V
Number of Characters:
2
Number of Functions:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
7 SEG NUMERIC LED DISPLAY
Peak Wavelength:
627 nm

DA56-11EWA Frequently Asked Questions (FAQs)

The recommended operating temperature range for the DA56-11EWA is -20°C to 70°C.
To ensure reliability in high-humidity environments, it is recommended to apply a conformal coating to the LED display and ensure good sealing of the device.
The maximum forward current rating for the DA56-11EWA is 20mA per segment.
Yes, the DA56-11EWA can be used in outdoor applications, but it is recommended to apply a UV-resistant coating and ensure proper sealing to protect the device from environmental factors.
The DA56-11EWA can be interfaced with a microcontroller using a multiplexing technique, where each segment is connected to a digital output of the microcontroller.
